Angle Sensor IC with Integrated Diagnostics

A1339

A1339 Product Image

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings A1339 ECAD Model Type Image
A1339データシート
Navigate

Description

Top Features

Packaging

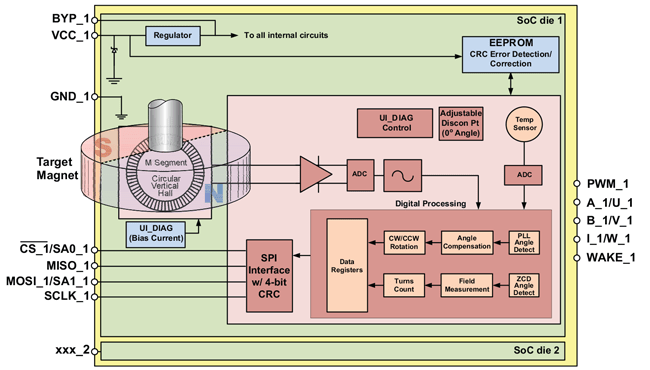

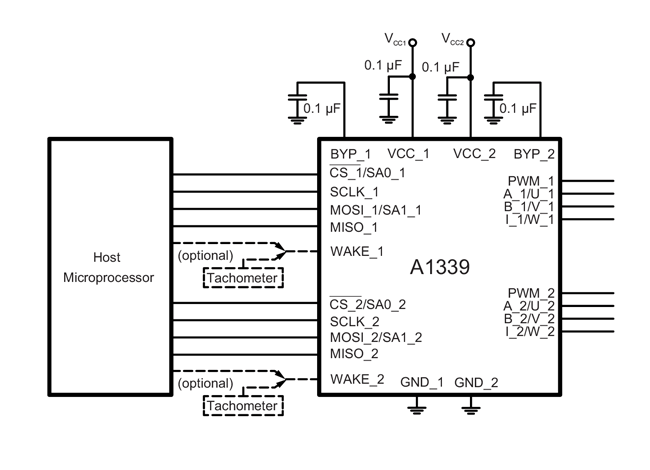

The A1339 is a 360° angle sensor IC that provides contactless, low latency, high-resolution angular position information based on magnetic Circular Vertical Hall (CVH) technology. It has a system-onchip (SoC) architecture that includes: a CVH front end, digital signal processing, and motor commutation (UVW) or encoder outputs (A, B, I). It also includes on-chip EEPROM technology, capable of supporting up to 100 read/write cycles, for flexible end-of-line programming of calibration parameters. The A1339 is ideal for automotive applications requiring 0° to 360° angle measurements, such as electronic power steering (EPS), rotary PRNDLs, and throttle systems.

The A1339 supports customer integration into safety-critical applications.

The A1339 is available in a dual-die 24-pin eTSSOP and a single-die 14-pin TSSOP package. The packages are lead (Pb) free with 100% matte-tin leadframe plating.

ASIL LogoA1339 was developed in accordance with ISO 26262:2011 as a hardware safety element out of context. The single die was designed to meet ASIL B capability, and the dual die was designed to meet ASIL D capability, for use in automotive safety-related systems when integrated and used in the manner prescribed in the applicable safety manual and datasheet.



  • Contactless 0° to 360° angle sensor IC, for angular position, rotational speed, and direction measurement
    • Capable of sensing magnet rotational speeds targeting 12b effective resolution with 900 G field
    • Circular Vertical Hall (CVH) technology provides a single channel sensor system supporting operation across a wide range of air gaps
  • Developed in accordance with ISO 26262:2011 requirements for hardware product development for use in safety-critical applications (pending assessment)
  • High diagnostic coverage
    • On-chip diagnostics include logic built-in self-test (LBIST), signal path diagnostics, and watchdogs to support safety-critical applications
    • 4-bit CRC on SPI
  • On-chip EEPROM for storing factory and customer calibration parameters
    • Single-bit error correction, dual-bit error detection through the use of error correction control (ECC)
  • Supports harsh operating conditions required for automotive and industrial applications, including direct connection to 12 V battery
    • Operating temperature range from –40°C to 150°C
    • Operating supply voltage range from 4.0 to 16.5 V
      • Can support ISO 7637-2 Pulse 5b up to 39 V
  • Low power mode and turns counter enable tracking of motor position even when vehicle is turned off
  • Multiple output formats supported for ease of system integration
    • ABI/UVW output provides high resolution, low latency, and PWM for initial position
    • 10 MHz SPI for low latency angle and diagnostic information; enables multiple independent ICs to be connected to the same bus
    • Output resolution on ABI and UVW are selectable
  • Multiple programming / configuration formats supported
    • The system can be completely controlled and programmed over SPI, including EEPROM writes
    • For system with limited pins available, writing and reading can be performed over VCC and PWM pins. This allows configuring the EEPROM in production line for a device with only ABI/UVW and PWM pins connected.
  • Stacked dual die construction to improve die-to-die matching for systems that require redundant sensors
  • Reduces magnet misalignment impact on die-to-die matching for a given magnet diameter, relative to “side-by-side” dual die orientation
A1339パッケージ
× not found

Part Number Specifications and Availability

Part Number
Description
Status
Output Type
Select all
ABI
PWM
SPI
UVW
Supply Voltage (V)
Select all
4.0 to 16.5
Resolution
Select all
12 bit
Refresh Rate (µs)
1
11
1
≥
≤
Response Time (µs)
Select all
7
Sensitive Axis
Select all
XY
Temp. Ranges
Select all
-40°C to 150°C
Package
Select all
14-Pin TSSOP
24-Pin eTSSOP
AEC-Q100 Qualified
Safety/ASIL/SIL
Select all
ASIL B
ASIL D
Sensor Type

Samples
Part Composition / RoHS DataCheck StockECAD
A1339LLETR-5-TSPI, PWM, ABI, UVW4.0 to 16.512 bit17XY-40°C to 150°C14-Pin TSSOPYesCVHView DataCheck Distributor StockECAD model image
A1339LLETR-TSPI, PWM, ABI, UVW4.0 to 16.512 bit17XY-40°C to 150°C14-Pin TSSOPYesCVHView DataCheck Distributor StockECAD model image
A1339LLPTR-5-DD-TSPI, PWM, ABI, UVW4.0 to 16.512 bit17XY-40°C to 150°C24-Pin eTSSOPYesCVHView DataCheck Distributor StockECAD model image
A1339LLPTR-DD-TSPI, PWM, ABI, UVW4.0 to 16.512 bit17XY-40°C to 150°C24-Pin eTSSOPYesCVHView DataCheck Distributor StockECAD model image
Part Number
Output Type
Supply Voltage (V)
Resolution
Refresh Rate
(µs)
Response Time
(µs)
Sensitive Axis
Temp. Ranges
Package
AEC-Q100 Qualified
Sensor Type
A1339LLETR-5-TSPIPWMABIUVW4.0 to 16.512 bit17XY-40°C to 150°C14-Pin TSSOPYesCVH
A1339LLETR-TSPIPWMABIUVW4.0 to 16.512 bit17XY-40°C to 150°C14-Pin TSSOPYesCVH
A1339LLPTR-5-DD-TSPIPWMABIUVW4.0 to 16.512 bit17XY-40°C to 150°C24-Pin eTSSOPYesCVH
A1339LLPTR-DD-TSPIPWMABIUVW4.0 to 16.512 bit17XY-40°C to 150°C24-Pin eTSSOPYesCVH

Documentation and Resources

Documentation

Filter Document Type:
All Types
All Types Application Note Brochure
Documents Found: 4
Document Type Document Name
Application Note
Output Protocols for Angle and Linear Position Sensors
Application Note
Microcontroller-Based Linearization of Angular Sensor ICs
Application Note
Allegro Motor Driving with Angular Sensor IC
Brochure
Enhancing Robotic Design
