400 kHz、高精度电流传感器，具有引脚可选增益

ACS37002

我们的 400 kHz ACS37002 系列传感器在繁重的工作负荷下也能保持出色性能，采用紧凑、低功率损耗的封装，可降低温度并延长电源系统的使用寿命。这些电流传感器在高速、高精度和温度稳定性之间取得恰当的平衡，使开关模式电源设计更加环保、高效，引领技术和世界走向更可持续发展的未来。

下载数据表

Navigate

Product Detail
Availability
Documentation and Resources

Description

Top Features

典型应用

封装

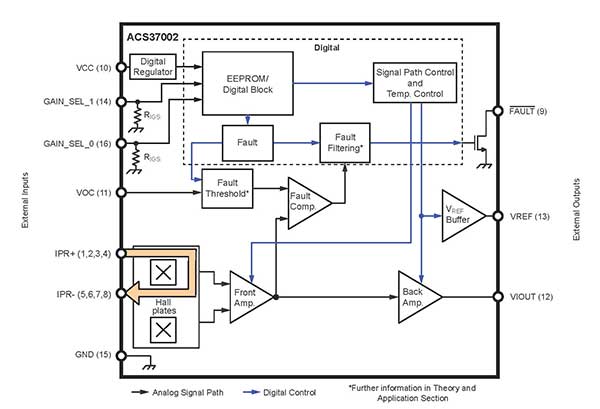

ACS37002 是具有极高精度的 400 kHz 全集成霍尔效应电流传感器，对要求最苛刻功率转换应用的控制回路也非常适合。电流流经内部导体，将产生的磁场耦合到霍尔传感器 IC。由于电流与 IC 之间没有物理连接，因此实现了高压隔离。电流由两个霍尔板差分感应，这些霍尔板屏蔽了干扰的外部共模磁场。该传感器在工厂进行了微调，以在整个工作范围内提供高精度，而无需用户编程。

传感器具有模拟输出和参考输出，可在嘈杂环境中保证信号完整性。还包括一个快速过流故障输出，用户可通过模拟输入引脚对阈值进行配置，从而提供短路检测并增强系统保护。该传感器以单一器件提供两路逻辑输入，还具有四个用户可选的增益，而无需额外的组件。这为设计人员提供了灵活性，对于需要不同电流检测范围的系统，可将总物料清单最小化。

ACS37002 采用三种不同的 SOICW-16 封装：

LA 封装经过优化，灵敏度更高，噪声更低；
MA 封装提供 4.8 kVrms 的高度隔离；
MC 封装是我们最新的封装，同时具有 0.27 mΩ 的同类最佳导体电阻和 5 kVrms 的最高隔离额定值，适用于需要超低功率损耗和高强化隔离的应用。

宽工作带宽：400 kHz
内部导体电阻低至 0.27 mΩ（MC 封装）
在 -40 至 125ºC 温度范围内灵敏度误差为 1% （KMA 版本）
引脚可选增益选项 (4)
快速过流检测：最大响应时间 1.5 µs

车载充电器 (OBC)
太阳能逆变器

ACS37002 采用三种不同的 SOICW-16 封装：LA 封装经过优化，灵敏度更高，噪声更低；MA 封装提供 4.8 kVrms 的高度隔离；MC 封装是我们最新的封装，同时具有 0.27 mΩ 的同类最佳导体电阻和 5 kVrms 的最高隔离额定值，适用于需要超低功率损耗和高强化隔离的应用。

MC 封装文档

MA 封装文档

LA 封装文档

Part Number Specifications and Availability

Documentation and Resources

Documentation

设计工具

第三方设计工具

Filter Document Type:

All Types

All Types Application Note Brochure Certificate FAQ Guide Technical Article

Documents Found: 32

Document Type	Document Name
Application Note	Package Thermal Resistance for Allegro Current Sensors with Integrated Conductors
Application Note	CMTI Comparison for Allegro Integrated Conductor Current Sensors
Application Note	How to Analyze and Compare Allegro Current Sensor and ADC Error Components
Application Note	Defining Electrostatic Discharge (ESD) Ratings for Allegro Integrated Current-Sensors
Application Note	Allegro Current Sensor ICs: Unique Packaging Options for Every Thermal Budget
Application Note	Current Sensing in Motor Drives
Application Note	Glossary of Isolation-Related Terms for Integrated Current Sensors
Brochure	Brochure: Battery Management Systems
Brochure	Comfort Through Sustainability - Unlock the Power of Heat Pump Innovation
Brochure	xEV Thermal Management System Brochure
Certificate	Certificate of Compliance 20190906-E316429
Certificate	CB Certificate US-32210-M3-UL
Certificate	CB Certificate US-35763-UL-60950-1
Certificate	Certificate CB US 36315 UL MA Package
Certificate	Certificate of Compliance 20200511-E316429
Certificate	Certificate CB US 35764 UL MC Package
FAQ	Current Sensors FAQ
Guide	ACS37002 Evaluation Board User Guide
Technical Article	Solar Energy Systems – New Market Trends in Current Sensing
Technical Article	New 400 kHz Current Sensors Enable More Sustainable Designs in Switch-Mode Power Designs
Technical Article	Magnetic Current Sensing Drives Vehicle Electrification

Filter Document Type:

All Types

All Types Gerber File Simulation Tool SPICE Model User Guide Webpage

Documents Found: 32

Document Type	Document Name
Gerber File	ASEK37002 Gerber 文件
Gerber File	ASEK37002MC Gerber 文件
Simulation Tool	电流传感器误差和分辨率
SPICE Model	ACS LTspice 库
User Guide	ACS37002 设备资源管理器
Webpage	电流传感器评估板页面

Mikroe 演示板

PWR Meter 3 演示板

Hall Current 16 Click 是一个紧凑型附加板，包含精确的 AC/DC 电流传感解决方案。此板采用 Allegro Microsystems 的 400kHz 高精度电流传感器 ACS37002。
