APS11205：适合低电压应用的高温霍尔效应开关

APS11205 Product Image

APS11205 ECAD Model
APS11205 数据表
Navigate

Description

Top Features

APS11205、霍尔效应传感器 IC 是极端温度稳定和抗应力器件，特别适合扩展结温范围的工作条件（最高可达 175°C）。动态偏移消除技术保证了在高温下的良好性能，可降低通常由器件超模压、温度依存性及热应力引起的剩余偏移电压。

该单硅片包括：霍尔板、小型信号放大器、斩波稳定器、施密特触发器，以及带短路保护的开漏极输出。强度足够大的南磁极打开输出。移开磁场时，输出会关闭。对于需要大于 5.5 V 的应用，或直接通过电池工作的应用，请参考 A1120。

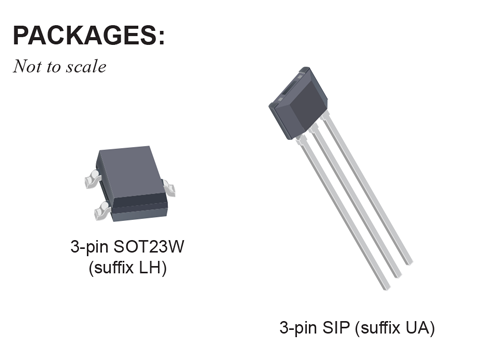

两种封装类型提供的通孔或表面安装选择。LH 型封装是经改进的 SOT23W 表面安装型封装，而 UA 封装是供过孔安装使用的三引脚超小型 SIP。两种封装均为无铅 (Pb) 封装，并兼容 RoHs 标准，引脚框均采用 100% 雾锡电镀。

  • 利用稳压电源轨实现应用优化
    • 2.8 至 5.5V 工作范围
  • 符合 AEC-Q100 汽车标准
  • 工作温度最高为结温 175°C
  • 动态偏移消除
    • 对物理应力不敏感
    • 非凡的温度稳定性
  • 单极开关点
  • 输出短路保护
  • 固态可靠性
  • 工业标准封装和管脚
