APS12205, APS12215, and APS12235: High-Temperature Hall-Effect Latches for Low Voltage Applications

APS122x5 Product Image

ECAD Models
APS12205/15/35 Datasheet
Navigate

Description

Top Features

The APS12205, APS12215, and APS12235* Hall-effect sensor ICs are extremely temperature-stable and stress-resistant devices especially suited for operation over extended junction temperature ranges up to 175°C. Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device overmolding, temperature dependencies, and thermal stress.

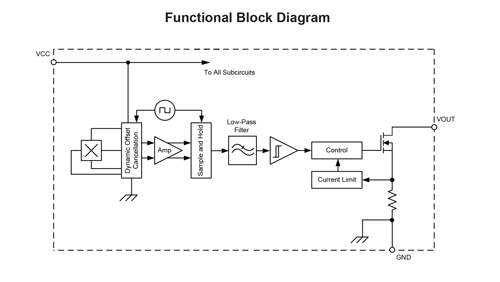

The single silicon chip includes: a Hall plate, small signal amplifier, chopper stabilization, Schmitt trigger, and a shortcircuit-protected open-drain output to sink up to 10 mA. A south pole of sufficient strength turns the output on; a north pole of sufficient strength is necessary to turn the output off. For applications requiring operation from greater than 5.5 V or operation directly from a battery, refer to the A1220, A1221, or A1223.

Two package styles provide a choice of through-hole or surface mounting. Package type LH is a modified 3-pin SOT23W surface-mount package, while UA is a three-pin ultramini SIP for through-hole mounting. Both packages are lead (Pb) free, with 100% matte-tin-plated leadframes.

*Contact Allegro for availability

  • Optimized for applications with regulated power rails
    • Operation from 2.8 to 5.5 V
  • AEC-Q100 automotive qualified
  • Operation up to 175°C junction temperature
  • Dynamic offset cancellation
    • Resistant to physical stress
    • Superior temperature stability
  • Symmetrical latch switchpoints
  • Output short-circuit protection
  • Solid-state reliability
  • Industry-standard packages and pinouts
× not found

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant 		Part Composition /
RoHS Data 		Comments Samples Check Stock
APS12205LLHALT 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12205LLHALX 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12205LUAA 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12215LLHALT 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12215LLHALX 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12215LUAA 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12235LLHALT 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12235LLHALX 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock
APS12235LUAA 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep		 Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

Allegro LH-UA Packaging

Packaging

Two package styles provide a choice of through-hole or surface mounting. Package type LH is a modified 3-pin SOT23W surface-mount package, while UA is a three-pin ultramini SIP for through-hole mounting. Both packages are lead (Pb) free, with 100% matte-tin-plated leadframes.

LH Package Documentation

UA Package Documentation
