A1266: Micropower Ultrasensitive 3D Hall-Effect Switch

A1266 Datasheet

Navigate

Availability
Packaging
Resources

Description

Top Features

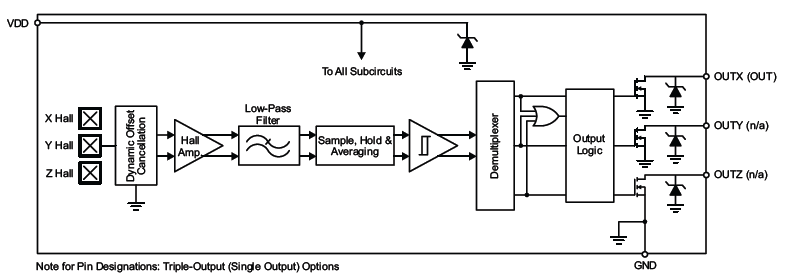

The A1266 integrated circuit is an ultrasensitive Hall-effect switch with 3D omnipolar magnetic actuation. The single silicon chip includes: three Hall plates, multiplexer, small-signal amplifier, chopper stabilization, Schmitt trigger, and NMOS output transistors. The device outputs turn on when a magnetic field of sufficient strength is applied to the sensor in any orientation. Removal of the magnetic field will turn the output off.

Two versions of the A1266 offer a choice of output format: separate X, Y, and Z outputs, or a combined X+Y+Z output. The low operating supply voltage, 2.5 to 5.5 V, and unique clocking algorithm assist in reducing the average power consumption, making it ideal for battery operation (e.g., the power consumption is less than 25 μW with a 3.3 V supply).

The small geometries of the BiCMOS process allow for ultrasmall packages suitable for even space-constrained applications. In this case, a modified SOT23-W surface-mount package is available in a 3-pin (combined output) or a 5-pin (separate outputs) configuration, magnetically optimized for use in a variety of orientations. The packages are lead (Pb) free and RoHS-compliant, with 100% matte-tin leadframe plating.

True 3D sensing
Omnipolar operation with either north or south pole
2.5 to 5.5 V operation
Low supply current
High sensitivity, B_OP typically 25 G
Chopper-stabilized offset cancellation
- Superior temperature stability
- Extremely low switchpoint drift
- Insensitive to physical stress
Solid-state reliability
Choice of output format
- Separate X, Y, and Z outputs
- Combined (X+Y+Z) output
Tiny SOT-23 packages

Part Number Specifications and Availability

Part Number	Package Type	Temperature	RoHS Compliant	Part Composition / RoHS Data	Samples	Check Stock
A1266ELHLT-SO3-T	3-lead SOT	-40°C to 85°C	Yes	View Data	Contact your local sales rep	Check Distributor Stock
A1266ELHLT-T	5-lead SOT	-40°C to 85°C	Yes	View Data	Contact your local sales rep	Check Distributor Stock
A1266ELHLX-SO3-T	3-lead SOT	-40°C to 85°C	Yes	View Data	Contact your local sales rep	Check Distributor Stock
A1266ELHLX-T	5-lead SOT	-40°C to 85°C	Yes	View Data	Contact your local sales rep	Check Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.
