APS11000, APS11060: Planar/Vertical Hall-Effect Switches

Allegro LH and UA packaging

Description

Top Features

The APS11000/060 family of Hall-effect switches are designed for operation from batteries or unregulated supplies in harsh automotive and industrial environments. The 11000 devices are conventional planar Hall-Effect sensors that respond to magnetic flux perpendicular to the face of the package; the 11060 devices feature a vertical Hall-effect sensing element that is sensitive to magnetic flux parallel to the face of the IC package.  This provides for a wide range of mounting and system packaging options.

These ICs are qualified to AEC-Q100 Grade 0. They can tolerate up to 40V and junction temperature up to 175°C.   In addition, they are internally protected against over-voltage, reverse-battery, load-dump, output short-circuits, human-body-model ESD up to ±11kV, and other common automotive EMC conditions.

APS11000/060 family devices come preconfigured with your choice of magnetic sensitivity thresholds, and polarity; there is also a choice of active-high or active-low output for ease of integration into electronic subsystems.

They are available in either of two package styles:package type LH is a modified 3-pin SOT23W surface mount package, while package type UA is a 3-pin ultra-mini SIP for through-hole mounting. Both packages are lead (Pb) free, with 100% matte-tin-plated leadframes.

For power-sensitive applications, the APS11700/760 offer the same features and performance with built-in, automatic power management for average supply currents as low as 6µA.



ASIL Logo

APS11000/060 were developed in accordance with ISO 26262:2011 as a hardware safety element out of context with ASIL A capability (pending confirmation) for use in automotive safety-related systems when integrated and used in the manner prescribed in the applicable safety manual and datasheet. For further information, contact your local Allegro field applications engineer or sales representative.

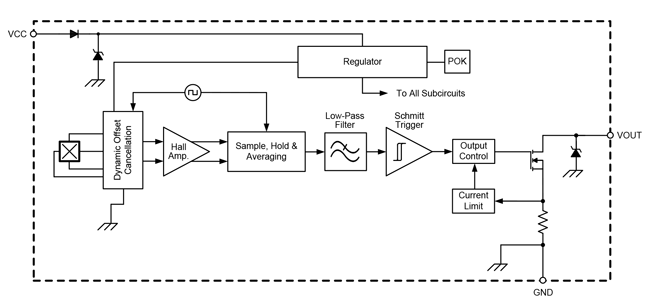

  • Planar or vertical Hall-effect sensing
  • 3.3 to 24 V operation; up to 40V absolute maximum
  • Automotive-grade ruggedness and fault tolerance
    • AEC-Q100 Grade 0 qualification
    • Operation at –40°C to 175°C junction temperature
    • Protected against over-voltage, load-dump, reverse battery, output shorts, and other EMC stresses
  • Selectable magnetic thresholds & omnipolar or unipolar activation
  • Open-drain output with choice of output polarity

Typical Applications

  • Gear Shift Selectors and Driver Controls (PRNDL)
  • Human-Machine Interfaces (HMI) and Driver Controls
  • Open/Close Sensor for LCD screens/doors/lids/trunks
  • Clutch/Brake Position Sensor
  • Magnetically Actuated Lighting
  • Wiper Home/End Position Sensor
  • End of Travel and Index Sensors

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
APS11000LUAA-0PL 3-lead SIP -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APS11000LUAA-0SL 3-lead SIP -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APS11000LUAATN-0PL 3-lead SIP -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APS11000LUAATN-0SL 3-lead SIP -40°C to 150°C -- View Data Contact your
local sales rep
Check
Distributor Stock
APS11060LLHALT-0SL 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS11060LLHALX-0SL 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
APS11060LUAATN-0SL 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

Allegro LH and UA packaging

Packaging

Package type LH is a modified 3-pin SOT23W surface mount package, while package type UA is a 3-pin ultra-mini SIP for through-hole mounting. Both packages are lead (Pb) free, with 100% matte-tin-plated leadframes.

LH Package Documentation

UA Package Documentation
