APS11205: High-Temperature Hall-Effect Switch for Low Voltage Applications

APS11205 Datasheet

Navigate

Availability
Packaging

Description

Top Features

The APS11205 Hall-effect sensor IC is an extremely temperature-stable and stress-resistant device, especially suited for operation over extended junction temperature ranges up to 175°C. Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device overmolding, temperature dependencies, and thermal stress.

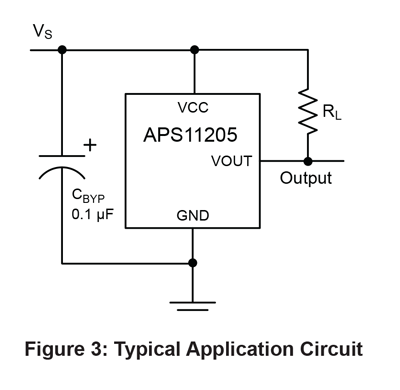

The single silicon chip includes: a Hall plate, small signal amplifier, chopper stabilization, Schmitt trigger, and a shortcircuit-protected open-drain output. A south pole of sufficient strength turns the output on. Removal of the magnetic field turns the output off. For applications requiring operation from greater than 5.5 V, or operation directly from a battery, refer to the A1120.

Two package styles provide a choice of through-hole or surface mounting. Package type LH is a modified SOT23W, surfacemount package, while UA is a three-lead ultra-mini SIP for through-hole mounting. Both packages are lead (Pb) free and RoHs compliant with 100% matte-tin leadframe plating.

Optimized for applications with regulated power rails
- Operation from 2.8 to 5.5 V
AEC-Q100 automotive qualified
Operation up to 175°C junction temperature
Dynamic offset cancellation
- Resistant to physical stress
- Superior temperature stability
Unipolar switchpoints
Output short-circuit protection
Solid-state reliability
Industry-standard packages and pinouts

Part Number Specifications and Availability

Part Number	Package Type	Temperature	RoHS Compliant	Part Composition / RoHS Data	Samples	Check Stock
APS11205LLHALT	3-lead SOT	-40°C to 150°C	Yes	View Data	Contact your local sales rep	Check Distributor Stock
APS11205LLHALX	3-lead SOT	-40°C to 150°C	Yes	View Data	Contact your local sales rep	Check Distributor Stock
APS11205LUAA	3-lead SIP	-40°C to 150°C	Yes	View Data	Contact your local sales rep	Check Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

Packaging

Package type LH is a modified SOT23W, surfacemount package, while UA is a three-lead ultra-mini SIP for through-hole mounting. Both packages are lead (Pb) free and RoHs compliant with 100% matte-tin leadframe plating.

LH Package Documentation

UA Package Documentation
