A4992: Automotive Stepper Driver

Product Image

Description

Top Features

The A4992 is a flexible microstepping motor driver with integrated phase current control and a built-in translator for easy operation. It is a single chip solution designed to operate bipolar stepper motors in full, half, quarter, eighth, and sixteenth step modes, at up to 28 V. At power-on the A4992 is configured to drive most small stepper motors with simple step and direction inputs.

The current regulator operates with fixed frequency PWM. It uses adaptive mixed current decay to reduce audible motor noise and increase step accuracy.

The current in each phase of the motor is controlled through a DMOS full bridge using synchronous rectification to improve power dissipation. Internal circuits and timers prevent crossconduction and shoot-through when switching between high-side and low-side drives.

The outputs are protected from short circuits. Features for low load current and stalled rotor detection are included. Chip level protection includes hot thermal warning, overtemperature shutdown, and overvoltage and undervoltage lockout.

An optional serial interface mode, using the STEP, DIR, and MS inputs, can be used to configure several motor control parameters and diagnostics.

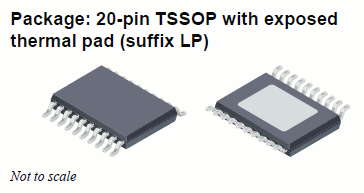

The A4992 is supplied in a 20-pin TSSOP power package with an exposed thermal pad (package type LP). This package is lead (Pb) free with 100% matte tin lead frame plating.

Applications:

  • Automotive stepper motors
  • Engine management
  • Headlamp positioning
  • Low RDS(on) outputs, 0.5 Ω source and sink typical
  • Continuous operation at high ambient temperature
  • 3.5 to 50 V supply operation
  • Adaptive mixed current decay
  • Synchronous rectification for low power dissipation
  • Internal overvoltage and undervoltage lockout
  • Hot warning and overtemperature shutdown
  • Crossover-current protection
  • Short circuit and open load diagnostics
  • Stall detect features
  • Configurable through serial interface

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
APEK4992KLP-01-T DEMO BOARD -20°C to 85°C No -- Contact your
local sales rep
Check
Distributor Stock
A4992KLPTR-T 20-lead TSSOP -40°C to 125°C Yes View Data Contact your
local sales rep
Check
Distributor Stock

Allegro’s products are not to be used in any devices or systems, including but not limited to life support devices or systems, in which a failure of Allegro’s product can reasonably be expected to cause bodily harm.

Packaging

Package

Design Support Tools

NOTE: When ordering APEK4992KLP-01-T , please also request APEK-USBCBLE-T
