ACS71020: Single Phase, Isolated, Power Monitoring IC with Voltage Zero Crossing and Overcurrent Detection

Description

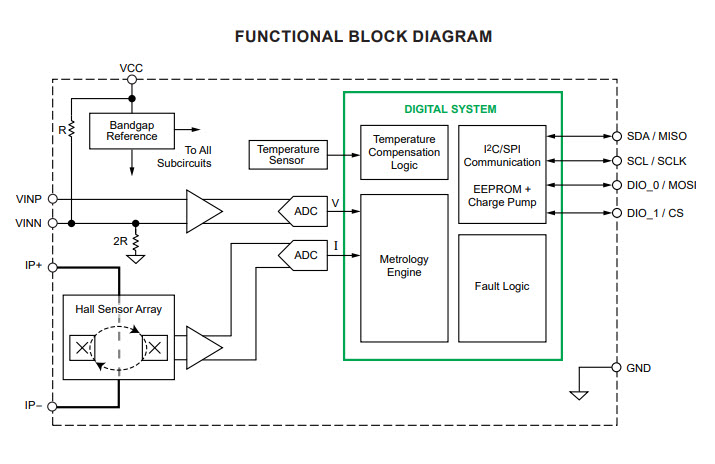

The ACS71020 power monitoring IC greatly simplifies the addition of power monitoring to any AC/DC powered device. By making use of Allegro’s Hall-effect-based, galvanically isolated integrated current sensor technology, reinforced isolation can be achieved. The sensor can be powered from the same supply as the MCU, eliminating the need for multiple power supplies and digital isolation ICs.

The isolated current measurement is done by detecting the magnetic field from the integrated conductor, eliminating the need for external sense resistors, current transformers, or Rogowski coils. Two Hall plates are used for this measurement to deferentially sense the field, thus eliminating errors due to stray magnetic fields. Multiple parameters like bandwidth, averaging time, and fault levels are user-programmable.

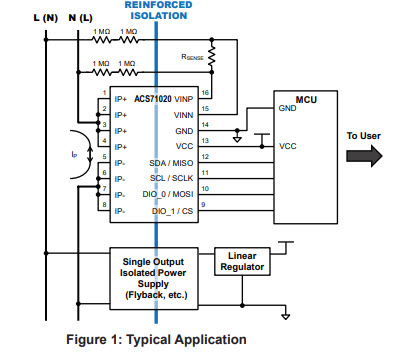

The sensor features all key power measurements, which can be read out through I2C or SPI, as well as dedicated pins for voltage zero crossing (suitable for light-dimming applications) and fast overcurrent fault (for short-circuit detection). As the sensor is isolated, these pins can be easily accessed by the MCU without additional isolation to each signal. These two pins can also be configured to flag a VRMS under/overvoltage.

The ACS71020 is provided in a small, low-profile, surface-mount SOIC16 wide-body package. The ACS71020 is lead (Pb) free, and is fully calibrated prior to shipment from the factory. Further customer calibration in application can improve accuracy.

Top Features

  • Accurate power monitoring of AC/DC applications
  • Reinforced isolation up to 517 VRMS in a single package eliminates the need for dual isolated supplies
  • Active, reactive, and apparent power measurements, and power factor
  • RMS and instantaneous voltage and current measurements
  • 0.85 mΩ primary conductor resistance for low power loss and high inrush current withstand capability
  • Dedicated voltage zero crossing pin
  • Overcurrent fault output pin
  • Hall-effect-based current measurement with common mode stray field rejection
  • User-programmable VRMS under/overvoltage pin
  • 1 kHz bandwidth
  • Current-sensing range from 0 to 90 A
  • I2C or SPI communication
  • User-programmable through EEPROM registers
  • 16-bit voltage and current ADCs

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
ACS71020KMABTR-015B5-SPI 16-lead SOIC -40°C to 125°C Yes View Data New Contact your
local sales rep
Check
Distributor Stock
ACS71020KMABTR-030B3-I2C 16-lead SOIC -40°C to 125°C Yes View Data New Contact your
local sales rep
Check
Distributor Stock
ACS71020KMABTR-030B3-SPI 16-lead SOIC -40°C to 125°C Yes View Data New Contact your
local sales rep
Check
Distributor Stock
ACS71020KMABTR-090B3-I2C 16-lead SOIC -40°C to 125°C Yes View Data New Contact your
local sales rep
Check
Distributor Stock
ASEK71020KMAB-015B5-SPI DEMO BOARD -40°C to 125°C No -- New Contact your
local sales rep
Check
Distributor Stock
ASEK71020KMAB-030B3-I2C DEMO BOARD -40°C to 125°C No -- New Contact your
local sales rep
Check
Distributor Stock
ASEK71020KMAB-030B3-SPI DEMO BOARD -40°C to 125°C No -- New Contact your
local sales rep
Check
Distributor Stock
ASEK71020KMAB-090B3-I2C DEMO BOARD -40°C to 125°C No -- New Contact your
local sales rep
Check
Distributor Stock
