Automotive Two-Channel Linear LED Controller with Internal PWM Dimming

A6272

A6272 Product Image

These parts are in production but have been determined to be NOT FOR NEW DESIGN.

This classification indicates that sale of this device is currently restricted to existing customer applications. The device should not be purchased for new design applications because obsolescence in the near future is probable. Samples are no longer available. Date of status change: December 5, 2018

We recommend the A6270-1 as a replacement part.

A6272 ECAD Model Type Image
Download Datasheet
Navigate

Description

Top Features

Packaging

The A6272 is a linear programmable current controller capable of accurately regulating LED current in two strings with external MOSFETs. The LED current can be switched between high current and low current for stop/tail or DRL/position applications. The two LED current levels from each output are set by two sense resistors. Current reference accuracy for each string current is better than ±4%.

Driving LEDs with constant current ensures safe operation with maximum possible light output. ICs can be connected in parallel for larger lighting applications.

Drain short-to-ground detection is provided for both external MOSFETs. A6272 also offers MOSFET drain short-to-VIN and open-LED fault protection. The MODE pin controls the action of the IC in the case of a fault.

A temperature monitor is included to reduce the LED drive current if the chip temperature exceeds a thermal threshold. An input voltage monitor is included to reduce LED current if VIN rises enough to exceed the set level.

The device is available in a 16-pin TSSOP (LP) and a 16-pin wettable flank TQFN (ES), both with exposed pad for enhanced thermal dissipation. Both packages are lead (Pb) free, with 100% matte-tin leadframe plating.

  • AEC-Q100 qualified
  • 5.3 to 40 V supply; operates down to 5.1 V, when enabled
  • LED current programmed independently with two external MOSFETs
  • Flexible LED dimming options
    • Integrated PWM dimming set by resistors
    • External PWM dimming set by microcontroller
    • Analog voltage control for PWM dimming
    • Current slew rate limit during PWM dimming
  • Adjustable LED current derating for elevated VIN
  • LED current derating for elevated junction temperature
  • Low regulation voltage for low power dissipation
  • Extensive fault detection and protection
    • Drain short-to-ground detection
    • Drain short-to-VIN, LED open, and thermal protection

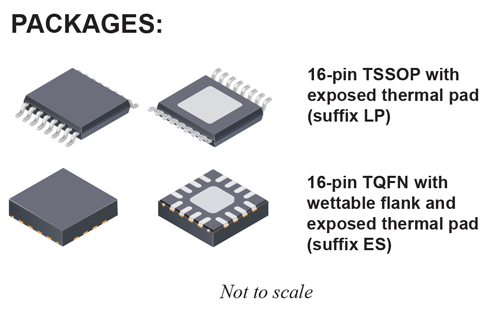

16-pin TSSOP with exposed thermal pad (suffix LP)

16-pin TQFN with wettable flank and exposed thermal pad (suffix ES)
