400kHz, High-Precision Linear Sensor IC with Vref and Overcurrent Fault

ACS37600

8-Pin-TSSOP-LU-Package, used in the ACS37612 coreless differential current sensor IC

ACS37600 ECAD Model
Datasheets
Navigate

Description

Top Features

Typical Applications

Packaging

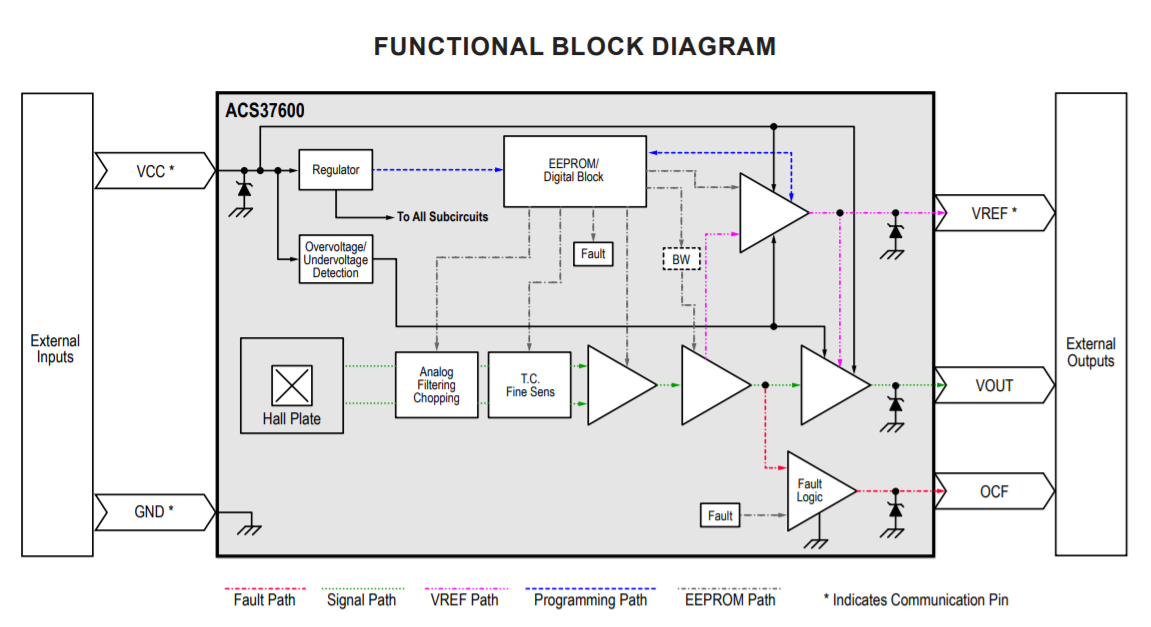

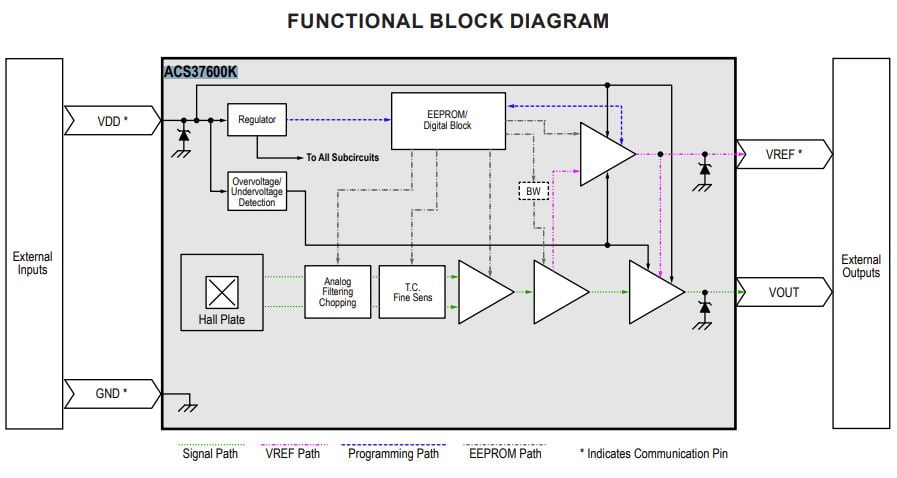

The ACS37600 is a Hall-based linear sensor available in either a surface mounted TSSOP8 (LU) or 4-pin SIP (OK) packages developed for core-based current sensing applications.

The 400 kHz bandwidth and high accuracy signal path with low noise make it suitable for demanding industrial applications. The OK package variant has a reference voltage pin for full control over offset levels, and the LU package variant has a reference voltage pin, along with an overcurrent fault pin for fast overcurrent detection for safety applications.

The wide sensitivity range, programmable bandwidth (100 kHz to 400 kHz) and programmable sensitivity over temperature (for concentrator core drift compensation) enables users to rapidly develop flexible, highly programmable current sensing modules all with one IC.

  • User programmable bandwidth (100 to 400 kHz)
  • Very fast response time (<1.25 μs typ.)
  • User programmable, bidirectional reference pin (VREF)
  • User-programmable overcurrent fault (OCF)
  • User-programmable sensitivity over temperature for ferromagnetic core drift compensation

The ACS37600 is a Hall-based linear sensor available in either a surface mounted TSSOP8 (LU) or 4-pin SIP (OK) packages developed for core-based current sensing applications.

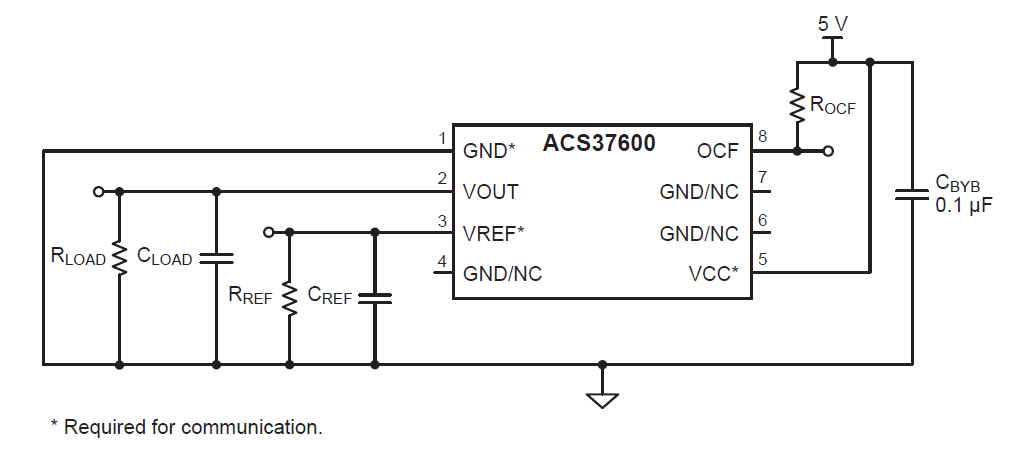

LU Package Documentation

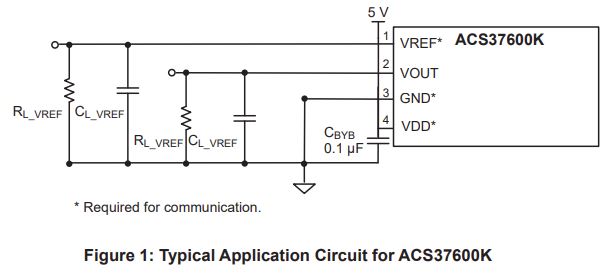

OK Package Documentation





× not found

Part Number Specifications and Availability

Documentation and Resources

Documentation

Design Tools

Third Party Design Tools

Filter Document Type:
All Types
All Types Application Note FAQ
Documents Found: 32
Document Type Document Name
Application Note
ACS37600 Reference PCB Design for Current Sensing Module Applications
Application Note
Glossary of Isolation-Related Terms for Integrated Current Sensors
FAQ
Current Sensors FAQ
Filter Document Type:
All Types
All Types Gerber File Hardware Kit or Board Simulation Tool SPICE Model User Guide
Documents Found: 32
Document Type Document Name
Gerber File
ASEK37600 Gerber Files
Hardware Kit or Board
ASEK-20 Sensor Evaluation Kit
Simulation Tool
Current Sensor Error and Resolution
SPICE Model
ACS LTspice Library
User Guide
ACS37600 Programming Guide
User Guide
ASEK37600 Evaluation Board User Manual
Filter Document Type:
All Types
All Types Third Party Tool
Documents Found: 32
Document Type Document Name
Third Party Tool
Mikroe Current 11 Click Add-on board
