1 MHz Bandwidth Contactless Current Sensor with <1% Total Error

CT450

CT450: 1 MHz Bandwidth Contactless Current Sensor with <1% Total Error Product Image

These parts are in production but have been determined to be NOT FOR NEW DESIGN.

This classification indicates that sale of this device is currently restricted to existing customer applications. The device should not be purchased for new design applications because obsolescence in the near future is probable. Samples are no longer available.

We recommend the CT455 or CT456 as a replacement part.

CT450 ECAD Model Type Image
Download Datasheet
Navigate

Description

Top Features

Typical Applications

Packaging

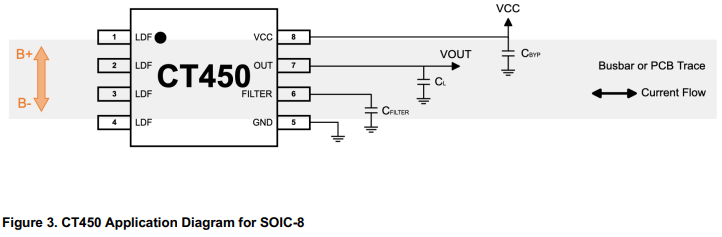

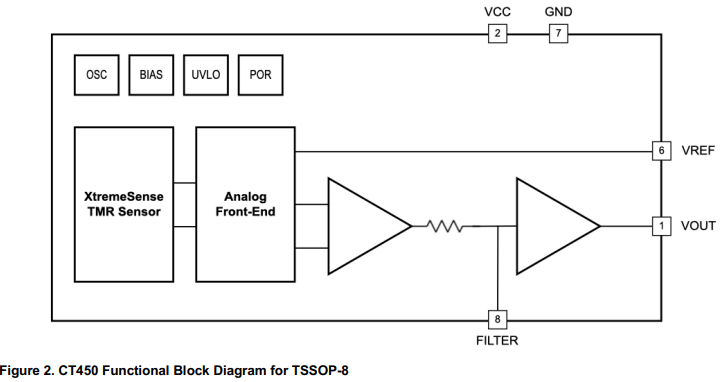

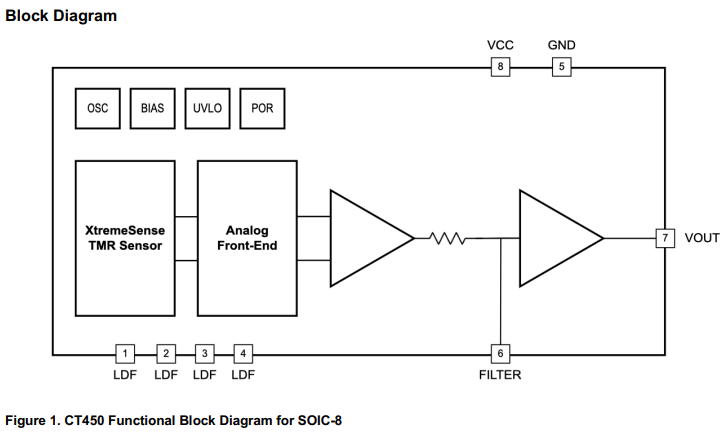

The CT450 is a high bandwidth and low noise integrated contactless current sensor that uses Allegro MicroSystems’ patented XtremeSense™ TMR technology to enable high accuracy current measurements for many consumer, enterprise, and industrial applications. It supports fixed and programmable field ranges where the CT450 sense and translate the magnetic field into a linear analog output voltage. It achieves a total error output better than ±1.0% over voltage and temperature.

It has less than 300 ns output response time while the current consumption is about 6.0 mA. The CT450 is equipped with a filter function to reduce the noise on the output pin.

The CT450 is housed in an 8-lead SOIC package and a very low profile, industry standard 8-lead TSSOP package that are both “green” and RoHS compliant.

  • Integrated Contactless Current/Field Sensor
  • Linear Analog Output Voltage
  • Total Error Output: ≤ ±1.0%, -40°C to +125°C
  • 1 MHz Bandwidth
  • Response Time < 300 ns
  • Reference Voltage Output for Unipolar/Bipolar Field Measurements
  • VOUT – VREF Error < 1.0% FS (Max)
  • Supply Voltage: 4.75 V to 5.50 V
  • Low Noise Performance
  • Filter Pin to Reduce Noise on Output
  • AEC-Q100 Grade 1
  • Package Options:
    • 8-lead SOIC
    • 8-lead TSSOP

The CT450 is housed in an 8-lead SOIC package and a very low profile, industry standard 8-lead TSSOP package that are both “green” and RoHS compliant.

× not found

Part Number Specifications and Availability

Documentation and Resources

Documentation

Filter Document Type:
All Types
All Types Application Note
Documents Found: 32
Document Type Document Name
Application Note
Calibration Guide for CT110, CT220 and CT450
Application Note
Glossary of Isolation-Related Terms for Integrated Current Sensors
