A19302: High-Accuracy, Pulse-Width or AK Protocol Hall-Effect Wheel Speed and Direction Sensor IC

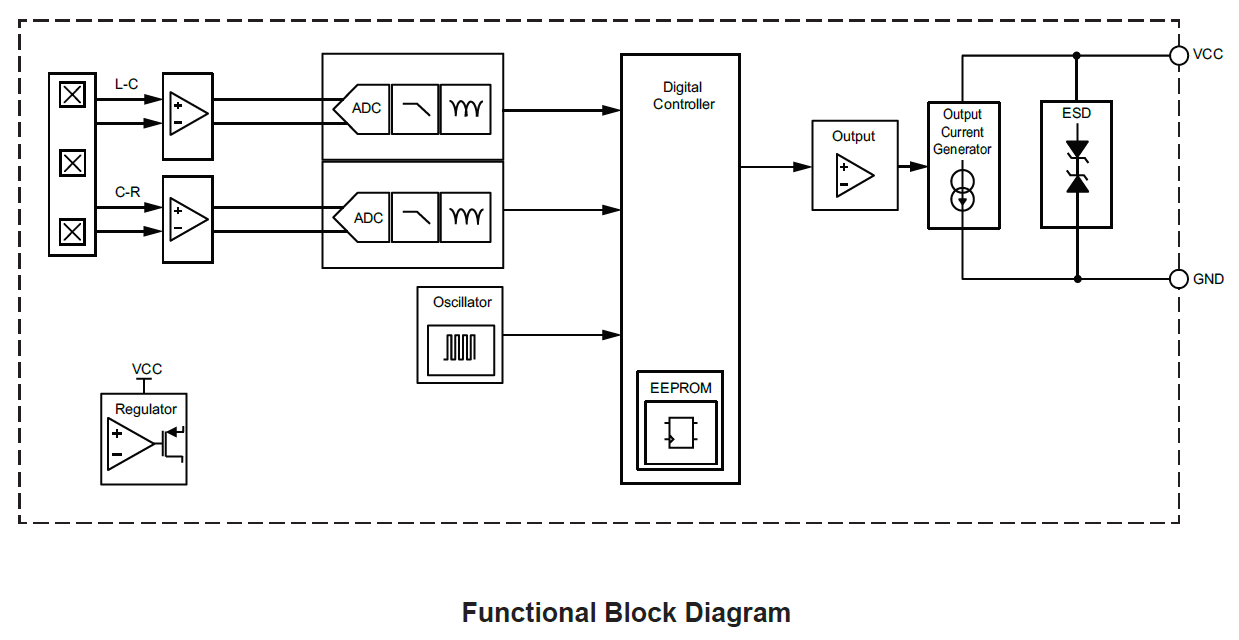

The A19302 is an optimized Hall-effect integrated circuit (IC) with the option for PW- or AK-protocol two-wire interface, ideal for applications requiring the determination of speed and direction of the sensed target.

The small package includes an integrated capacitor and Hall-based IC in a single overmolded design, with an additional molded lead-stabilizing bar for robust shipping and ease of assembly. The IC’s SolidSpeed Digital Architecture™ provides highly accurate speed and rotational direction detection. The intelligent algorithms provide signal optimization and compensation capable of maintaining stable operation in the harsh automotive environments common to wheel speed applications.

The A19302 was developed in accordance with ISO 26262 as a hardware safety element out of context with ASIL B(D) capability (pending final assessment) for use in automotive safety-related systems when integrated and used in the manner prescribed in the applicable safety manual and datasheet. The IC includes built-in EEPROM scratch memory available for device traceability throughout sensor module production.

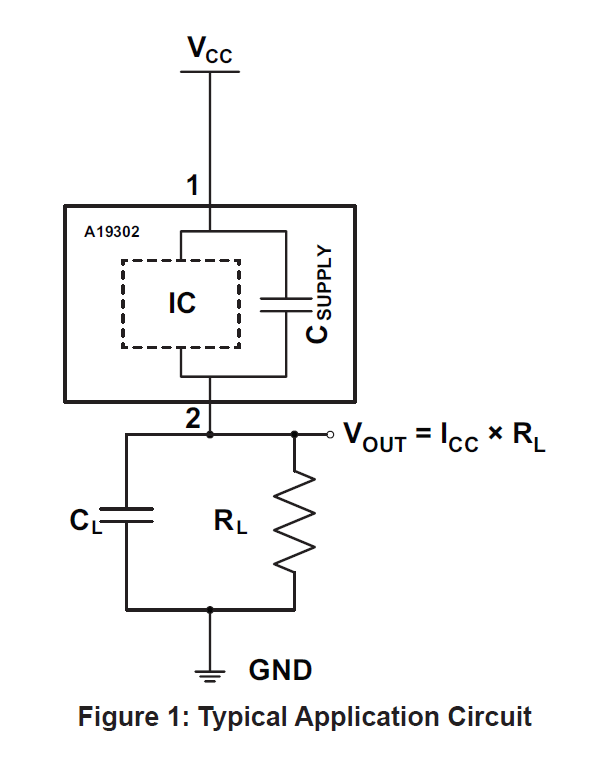

The IC is offered in the UB package, which integrates the IC and a high temperature ceramic capacitor in a single overmolded SIP package for enhanced EMC performance. The 2-pin SIP package is lead (Pb) free, with tin leadframe plating.

Top Features

  • Hall-effect technology allows ease of use for ring magnet and ferromagnetic target sensing
  • PW or AK Protocol for speed and direction information, signal integrity, and functional status
  • Integrated capacitor in a single overmolded miniature package provides greater EMC robustness
  • SolidSpeed Digital Architecture™ supports advanced algorithms, maintaining pitch accuracy during dynamic air gap disturbances
  • ISO 26262 ASIL B(D) with integrated diagnostics and certified safety design process (pending final assessment)

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Part Composition /
RoHS Data
Comments Samples Check Stock
A19302PUBALU-FAE-A 2-lead SIP -40°C to 160°C Yes View Data New Contact your
local sales rep
Distributor Stock
A19302PUBATN-FAE-A 2-lead SIP -40°C to 160°C Yes View Data New Contact your
local sales rep
Distributor Stock

Allegro 的产品不允许在任何由于 Allegro 产品的合理故障造成人身伤害的装置或系统中使用,包括但不限于生命支持装置或系统。


2-Pin SIP (suffix UB)

View Packaging
