Allegro Current Sensor Evaluation Boards

Allegro Current Sensor Evaluation Boards offer a convenient method for quickly evaluating Allegro Current Sensors in a lab environment without needing a custom circuit board. These evaluation board are intended for use with a user-populated Allegro Current Sensor IC.

Features

What is Included

Simplifying the Allegro Current Sensor evaluation process with straightforward and comprehensible board design, saving time and effort while remaining efficient
- Test points allow convenient access to device pins allowing for quick measurement and validation without the need of complex test setups
Enhanced thermal performance and heat dissipation allowing precise and reliable measurements
- 6-layer PCB with 2 oz copper weight on all layers
- Nonconductive filled Via-In-Pad used
- High performance FR4 material
Flexible instrument connection
- Standard Keystone test points, SMA/SMB connector or 2-pin headers options are provided
Sensor integrated current loop resistance can be measured directly on the evaluation board; voltage drop can be measured for approximating power loss in the package

Bare printed circuit board without populated components
- NOTE: It is up to the user to assemble the board with the desired current sensor IC. This board does not come populated with an Allegro current sensor.
Recommended bill of materials (BOM) for all compatible current sensors can be found in the Bill of Materials section of the respective user guide

裸板选择表

裸评估板	立即购买	兼容封装	兼容电流传感器	用户指南	PCB 信息

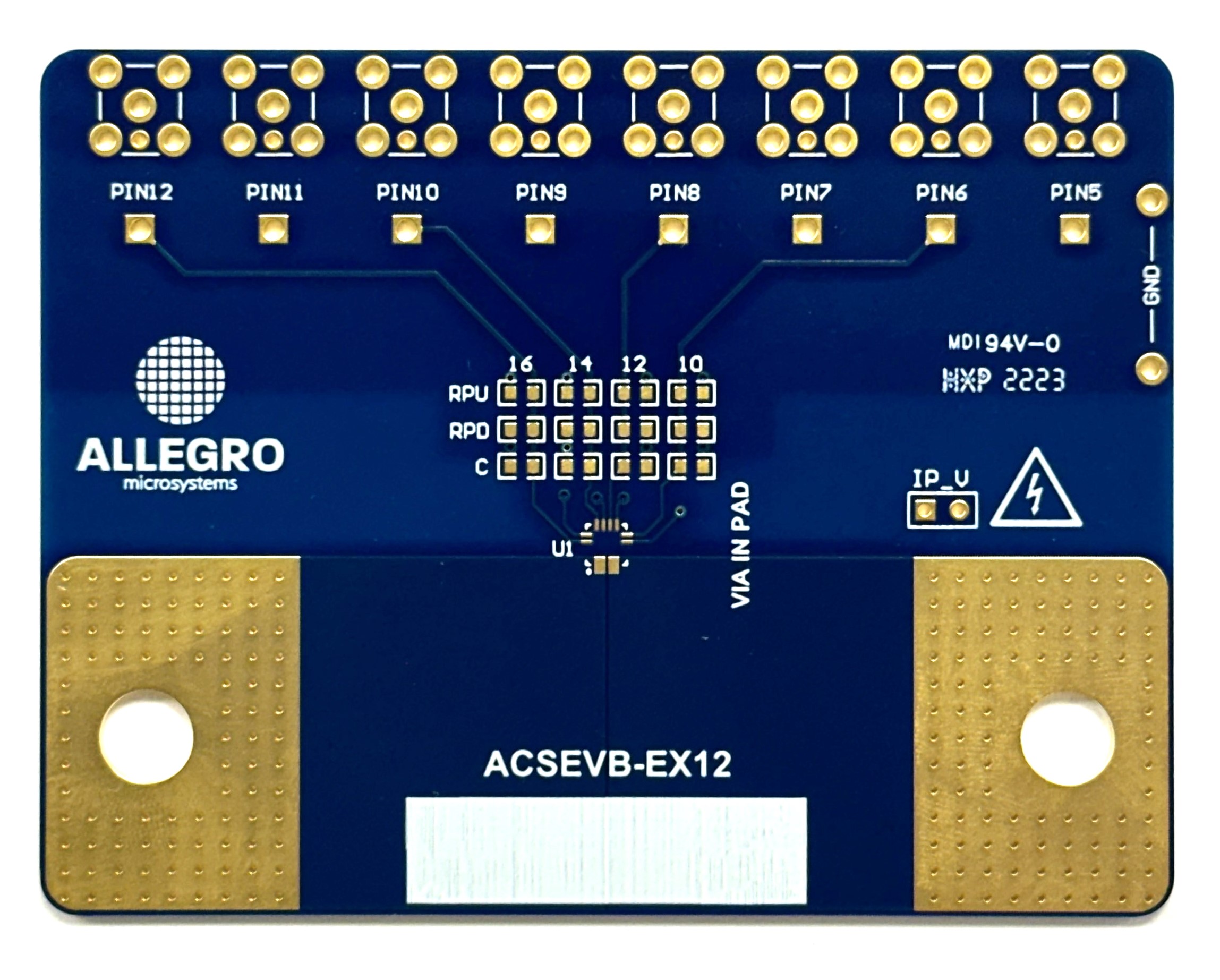

评估板名称ACSEVB-EX12	立即购买立即购买	封装EX（12 触点 QFN，带可润湿侧翼）	兼容电流传感器ACS71240、ACS711	用户指南EX 通用评估板用户指南	PCB 信息Gerber 文件和 Fab 信息（Zip 文件夹）评估板示意图 (PDF)

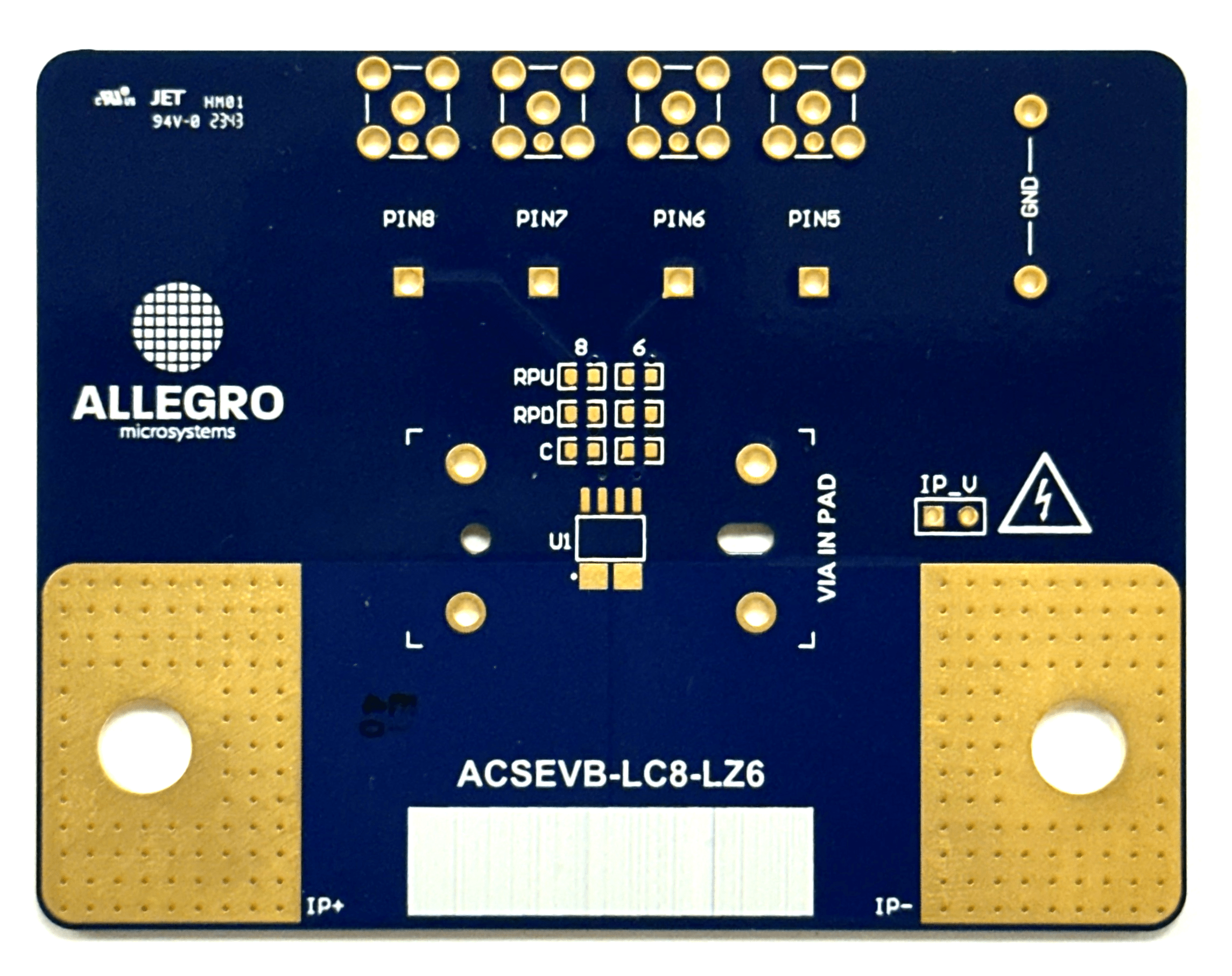

评估板名称ACSEVB-LC8-LZ6	立即购买立即购买	封装LC (SOIC-8)/LZ（自定义 6 引脚 SOIC）	兼容电流传感器ACS71240、ACS37030/ACS37032、ACS37010/ACS37012、ACS730、ACS725、ACS724、ACS723、ACS722、ACS715、ACS714、ACS713、ACS712、ACS711、CT41x、CT42x	用户指南LC-LZ 评估板用户指南	PCB 信息Gerber 文件和 Fab 信息（Zip 文件夹）评估板示意图 (PDF)
评估板名称ACSEVB-LH5	立即购买立即购买	封装LH (SOT23-W 5)	兼容电流传感器ACS37041	用户指南LH 评估板用户指南	PCB 信息Gerber 文件和 Fab 信息（Zip 文件夹）评估板示意图 (PDF)

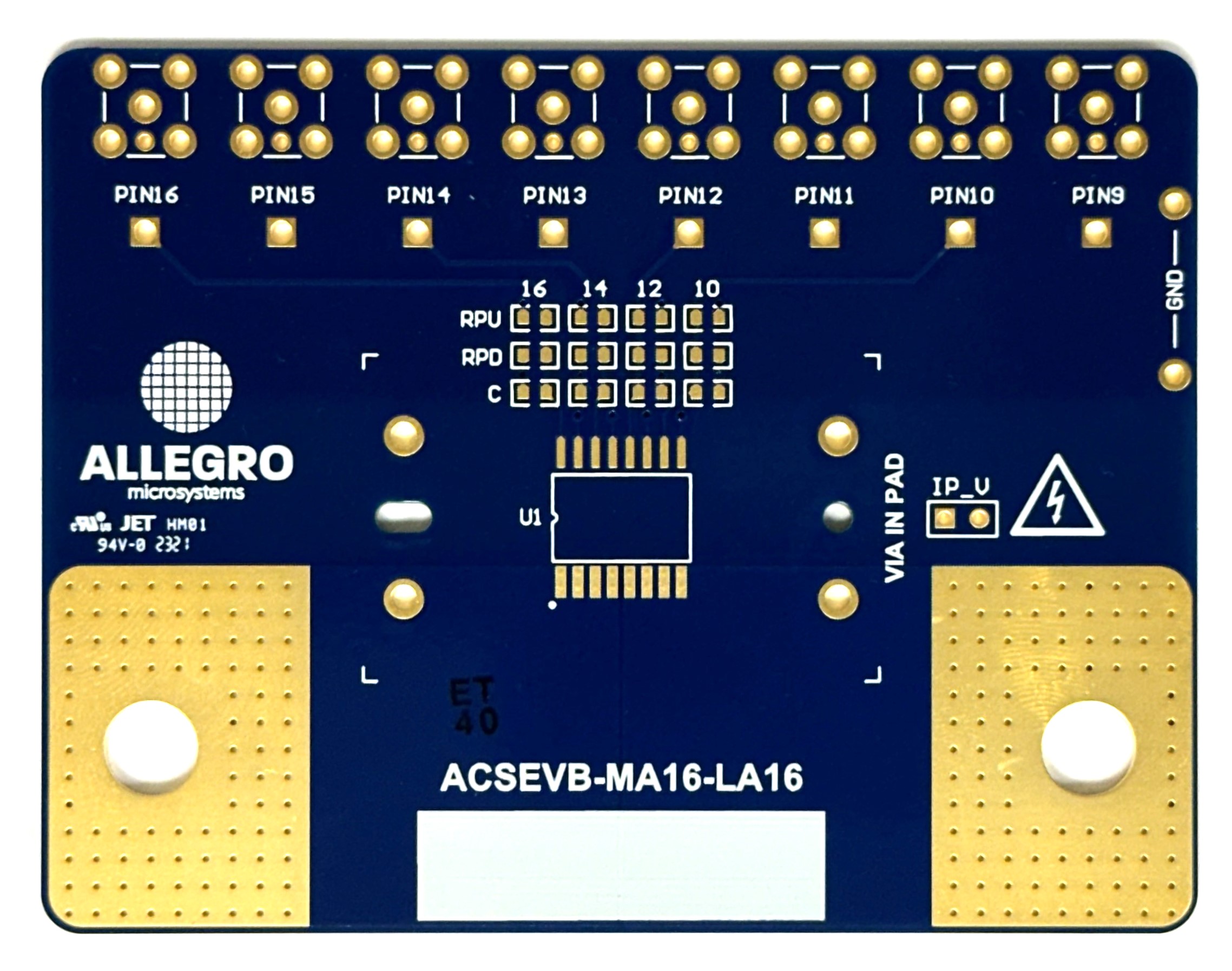

评估板名称ACSEVB-MA16-LA16	立即购买立即购买	封装MA (SOICW-16)/LA (SOICW-16)	兼容电流传感器ACS37002、ACS733、ACS732、ACS720、ACS716、ACS710、ACS71020、、ACS725、ACS724、ACS723、ACS722、ACS718、ACS717、CT430、CT431、CT432、CT433	用户指南MA-LA 评估板用户指南	PCB 信息Gerber 文件和 Fab 信息（Zip 文件夹）评估板示意图 (PDF)

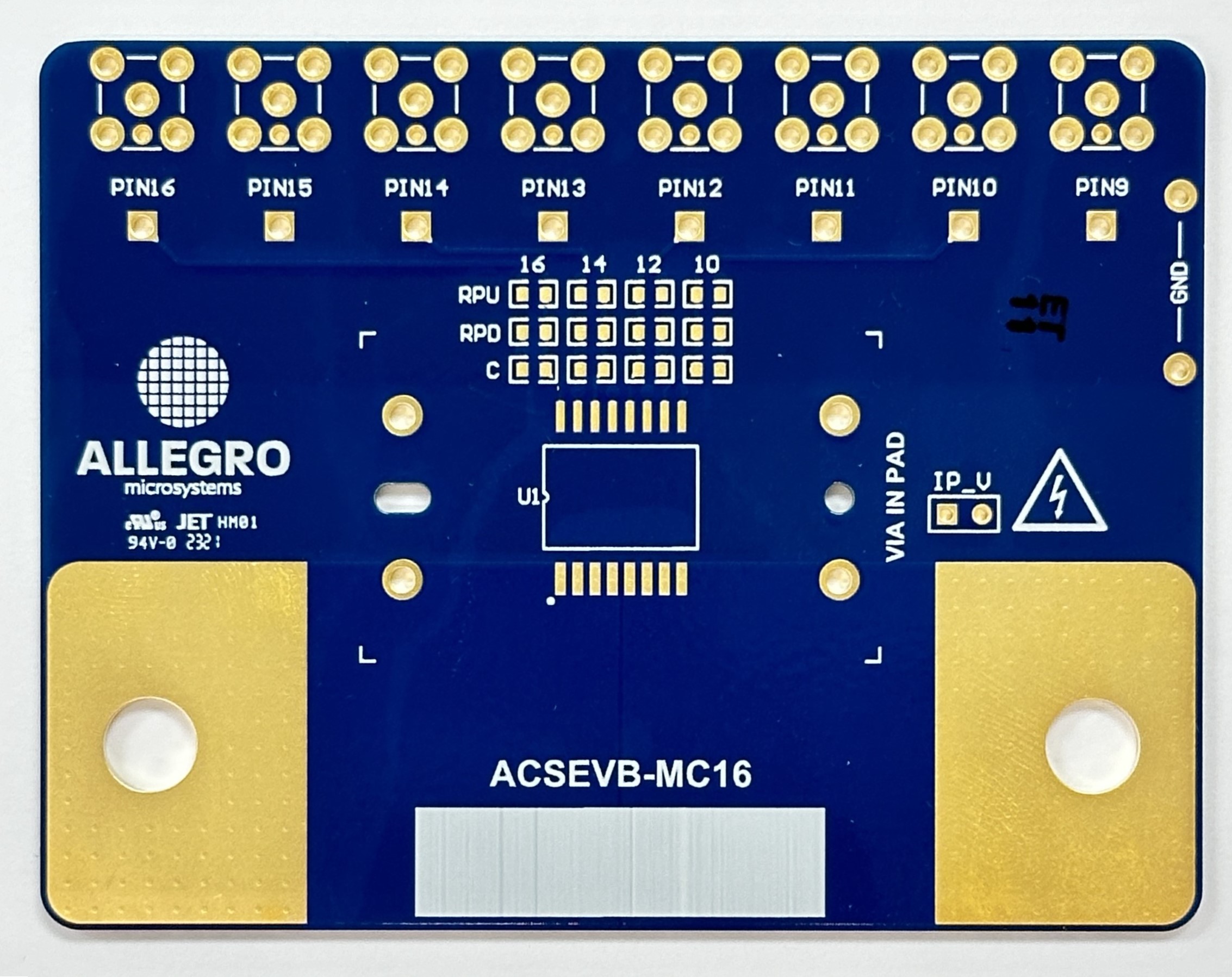

评估板名称ACSEVB-MC16	立即购买立即购买	封装MC (SOICW-16)	兼容电流传感器ACS37002、ACS37003、ACS724、ACS725	用户指南MC 评估板用户指南	PCB 信息Gerber 文件和 Fab 信息（Zip 文件夹）评估板示意图 (PDF)
评估板名称ACSEVB-CB5-SMT	立即购买立即购买	封装CB（自定义 5 引脚封装，SMT 引线形式）	兼容电流传感器ACS770、ACS772、ACS773	用户指南CB 评估板用户指南	PCB 信息Gerber 文件和 Fab 信息（Zip 文件夹）评估板示意图 (PDF)
