A119x 和 A119x-F:可编程斩波稳定两线霍尔效应开关

Description

A119x 和 A119x-F 由一系列两线单极霍尔效应开关组成,可由用户在生产结束后预校,以优化磁性开关点在应用中的精度。后者(-F 选项)是温度补偿,用于铁氧体磁铁这些设备通过 Allegro 先进的 BiCMOS 晶圆制造流程,使用其专有的高频率四相斩波稳定技术制造。此技术可实现相对于所有操作温度的磁稳定性,消除单霍尔元件装置的固有偏移,适用于恶劣的应用环境。

A119x 和 A119x-F 系列能满足许多汽车应用的需求。这些应用包括感应座椅调节导轨位置、安全带搭扣存在、引擎盖/后备箱锁闭和换挡选择器的位置。

与传统的开路集电极开关相比,两线单极开关在工作时少用一根线,所以它们非常适合对成本敏感的应用。而且,系统设计师能始终获得诊断信息,因为输出电流必须始终在两个狭窄范围内。任何不在这两个范围内的电流水平则表明出现故障。

所有产品均以三种封装类型提供。LH 为 SOT-23W 微型扁平表面安装型封装。UA 是用于通孔安装的 3 引脚超微型单列直插式封装 (SIP)UB 是用于通孔安装的 2 引脚超微型单列直插式封装 (SIP),并集成了电源去耦电容器。所有三种封装均为无铅 (Pb) 封装,引脚框均采用 100% 雾锡电镀。

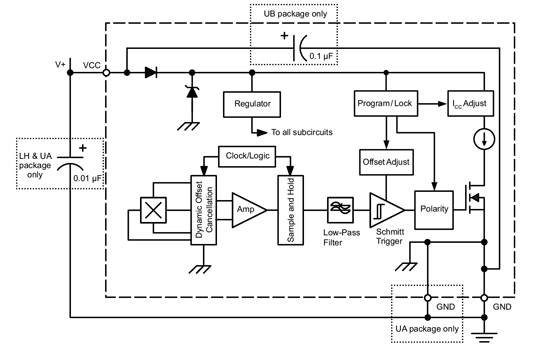

Top Features

  • 工厂预设温度系数 (TC) 确保与铁氧体或稀土磁铁或连用
  • 现场可编程以优化开关点
  • 符合 AEC-Q100 汽车标准
    • 板上电压调节器:3 - 24 V 工作电压
  • 高速四相斩波稳定
    • 在整个温度范围以内的开关点漂移低
    • 对热应力和机械应力的灵敏度低
  • 芯片保护
    • 电源瞬态保护
    • 电池反接保护
    • 通过使用专利 40 V 夹紧结构达到行业领先的 ISO 7637-2 性能标准
  • 固态稳定性
  • 可靠的 EMC 和 ESD 性能
  • 具有集成 0.1 µF 旁路电容器的 UB 封装

Part Number Specifications and Availability

Part Number Package Type Temperature RoHS
Compliant
Part Composition /
RoHS Data
Comments Samples Check Stock
A1190LUB-T n/a -20°C to 85°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1190LUBTN-T n/a -20°C to 85°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1190LLHLT-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1190LLHLX-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1190LUA-T 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1190LUBLU-T 2-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1192LUBLU-F-T 2-lead SIP -20°C to 85°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1192LLHLT-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1192LLHLU-F-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1192LLHLU-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1192LLHLX-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1192LUA-T 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1192LUBLU-T 2-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1193LUBLU-F-T n/a -20°C to 85°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1193LLHLT-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1193LLHLU-F-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1193LLHLU-T SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1193LLHLX-T 3-lead SOT -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1193LUA-T 3-lead SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock
A1193LUBLU-T SIP -40°C to 150°C Yes View Data Contact your
local sales rep
Check
Distributor Stock

Allegro 的产品不允许在任何由于 Allegro 产品的合理故障造成人身伤害的装置或系统中使用,包括但不限于生命支持装置或系统。
