Hall-Effect Latch for Automotive, Consumer, and Industrial Applications

APS12202, APS12212

Description

Top Features

Typical Applications

Packaging

The APS12202 and APS12212 Hall-effect latches are suited for operation over extended temperature ranges (up to 150°C). Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device package overmolding, temperature dependencies, and thermal stress. The two devices are identical except for their magnetic switch points.

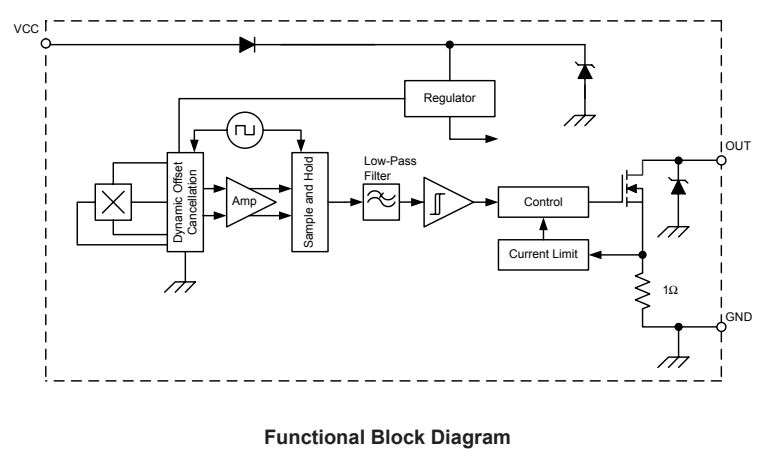

Both devices include, on a single silicon chip, a voltage regulator, a Hall voltage generator, a small-signal amplifier, chopper stabilization, a Schmitt trigger, and a short-circuit protected open-drain output to sink up to 25 mA. A south polarity magnetic field of sufficient strength is required to turn the output on. A north polarity field of sufficient strength is necessary to turn the output off. An onboard regulator permits operation with supply voltages in the range of 3 to 24 V.

Two package styles provide a magnetically optimized package for most applications: the LH is a SOT23W low-profile surface-mount package, and the UA is a three-pin SIP for through-hole mounting. Both packages are lead (Pb) free with 100% matte-tin leadframe plating.

  • Symmetrical switch points
  • Resistant to physical stress
  • Superior temperature stability
  • Output short-circuit protection
  • Operation from unregulated supply
  • Reverse battery protection
  • Solid-state reliability
  • Small package size
  • AEC-Q100 automotive qualified

Two package styles provide a magnetically optimized package for most applications: the LH is a SOT23W low-profile surface-mount package, and the UA is a three-pin SIP for through-hole mounting. Both packages are lead (Pb) free with 100% matte-tin leadframe plating.

LH Package Documentation

UA Package Documentation

Part Number Specifications and Availability
