What is TMR?

In the ever-evolving landscape of technological advancements, one concept stands out for its potential to revolutionize various industries: Tunnel Magnetoresistance (TMR) technology. While its name might sound complex, the principles behind TMR are elegantly simple, offering a host of benefits that range from enhanced efficiency to increased reliability across a wide array of applications.

Understanding TMR Technology

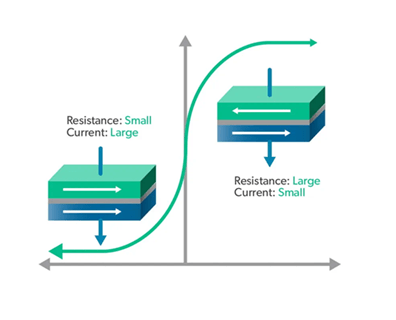

At a basic level, imagine you have two magnets and a thin wall between them. The magnets are special: they can change which way they "point" their magnetic north and south poles. The wall is so thin that tiny particles, like electrons, can pass through it, but it's not easy. Now, think of the ease with which electrons can pass through the wall as "resistance." When the magnets point in the same direction (north-north or south-south), the electrons have an easier time passing through, so the resistance is low. But when the magnets point in opposite directions (north-south), it's harder for the electrons to get through, so the resistance is high. This is similar to how TMR sensors work. Instead of magnets, they use special materials that act like magnets. When a magnetic field, like the one from a magnet or a current-carrying wire, is nearby, it changes the way these "magnet-like" materials are aligned. This, in turn, changes the resistance of the sensor. By measuring this resistance, TMR sensors can tell us things about the magnetic field, like how strong it is, where it's coming from, and even which way it's pointing. At a higher level, TMR technology relies on the manipulation of electron spin to detect magnetic fields. This technique leverages the phenomenon of tunneling magnetoresistance, wherein the electrical resistance of a magnetic tunnel junction changes as a function of the relative orientation of its magnetic layers. TMR sensors typically consist of two ferromagnetic layers separated by a non-magnetic spacer layer. When a magnetic field is applied, the relative alignment of the magnetic moments in these layers affects the electron tunneling probability, leading to a measurable change in resistance. This change in resistance forms the basis for sensing various parameters, such as magnetic field strength, position, and direction.

Advantages of TMR Technology

The widespread adoption of TMR technology can be attributed to its numerous advantages over traditional sensing methods:

• High Sensitivity and Resolution: TMR sensors exhibit high sensitivity and resolution when compared to other magnetic sensing technologies, allowing for accurate detection and measurement of magnetic fields with minimal error. This characteristic makes them ideal for applications that require precise sensing in both static and dynamic conditions.
• Low Power Consumption: TMR technology boasts low power consumption, making it energy-efficient and well-suited for battery-powered devices. This attribute not only prolongs device battery life but also reduces operational costs, making TMR sensors a cost-effective solution for various applications.
• Wide Operating Temperature Range: TMR sensors can operate over a wide temperature range, from cryogenic temperatures to elevated temperatures exceeding 150°C. This versatility enables their deployment in environments with extreme temperature variations, where conventional sensors may fail to function reliably.
• Immunity to External Interference: Allegro’s TMR sensors are designed to be immune to external interference from sources such as electromagnetic noise and mechanical vibrations. This immunity ensures accurate and stable measurements, even in electrically or magnetically noisy environments, enhancing overall system reliability and performance.

Applications Across Industries

The versatility of TMR technology makes it applicable across a diverse range of industries, each benefiting from its unique capabilities. Here's a glimpse into some of the areas where TMR technology is making significant strides in:

• Automotive applications, TMR sensors play a vital role in applications like angle detection and current sensing in electric vehicles (EVs). By providing accurate, high resolution and reliable measurements even in harsh environments, TMR sensors contribute to improved vehicle performance, safety, and efficiency.
• Industrial automation, TMR technology finds applications in position sensing, proximity detection, and current monitoring. The robustness of TMR sensors makes them well-suited for demanding industrial environments, where precision and reliability are paramount for maintaining operational efficiency.
• Consumer electronics, TMR sensors are employed in devices ranging from smartphones and tablets to wearables and gaming consoles. These sensors enable features like joystick and trigger position detection, precise optical image stabilization while improving battery lifetime enhancing user experience while ensuring seamless functionality.

Conclusion

In summary, TMR technology represents a significant leap forward in the field of magnetic sensing, offering unparalleled precision, reliability, and versatility across various industries. We see its widespread adoption in an ever-expanding range of applications, from automotive and industrial automation to consumer electronics and healthcare. Whether it's improving efficiency on the factory floor, enhancing user experience in consumer devices, or enabling groundbreaking medical advancements, TMR technology is poised to shape the future of technology in profound and transformative ways.
