XtremeSense TMR Current Sensor with High dV/dt Immunity, 5kV Isolation and Common-Mode Field Rejection

CT433

Download Datasheet

Navigate

Product Detail
Availability
Documentation and Resources

Description

Top Features

Typical Applications

Packaging

The CT433 is a high bandwidth and ultra-low noise integrated contact current sensor that uses Allegro MicroSystems’ patented XtremeSense™ TMR technology to enable high accuracy current measurements for many consumer, enterprise, and industrial applications. It supports multiple current ranges where the integrated current carrying conductor (CCC) will handle up to 70 A of current and generates a current measurement as a linear analog output voltage. It achieves a total output error of less than ±1.0% full-scale (FS) over supply voltage and the full temperature range.

It has about a 300 ns output response time while the current consumption is about 6.0 mA and is immune to common mode fields. The CT433 was optimized for high dV/dt applications which minimizes capacitive coupling to VOUT allowing CT433 to be used in switching applications.

The CT433 is offered in an industry standard 16-lead SOIC- Wide package that is “green” and RoHS compliant. Also available in 5.0 V version as CT432.

Optimized for high dV/dt applications
Total Error Output: ±0.5% FS
300 ns Response Time, 1 MHz Bandwidth
Noise as Low as 9.5 mARMS
Integrated 0.5 mΩ Conductor
VCC = 3.3 V
Common Mode Field Rejection: -54 dB
Rated Isolation Voltage: >5 kVRMS
UL/IEC 62368-1 and UL1577 Certification
IEC 61000-4-5 Certified
AC or DC Current Range:
- +20.0 ADC / ±20.0 APK
- +30.0 ADC / ±30.0 APK
- +50.0 ADC / ±50.0 APK
- +65.0 ADC / ±65.0 APK
- +70.0 ADC / ±70.0 APK
16-Lead SOIC-Wide package
8mm creepage package

Power Inverters
UPS, SMPS and Telecom Power Supplies
Motor Control
Over-Current Fault Protection

The CT433 is offered in an industry standard 16-lead SOIC- Wide package that is “green” and RoHS compliant.

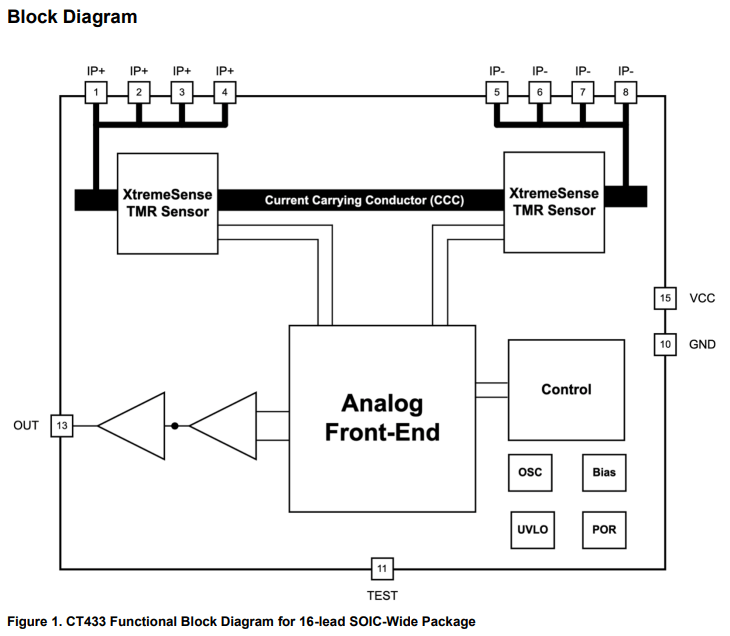

CT433: XtremeSense® TMR Current Sensor with High dV/dt Immunity, 5kV Isolation and Common-Mode Field Rejection Functional Block Diagram

Part Number Specifications and Availability

Allegro's XtremeSense™ TMR technology

Superior magnetic sensitivity, low power consumption, and compact size compared to other technologies, driving innovation in applications like renewable energy, electric vehicles, and consumer electronics.
