12V and 48V Sensorless Field-Oriented Control BLDC Motor Controller

A89333, A89333-1

Allegro EC 28-Pin Package

From whisper-quiet operation to robust 12V and 48V server fan control, the A89333 family of sensorless Field-oriented control (FOC) BLDC motor controllers provides a full motor control solution – in as small as 4 mm x 4mm. Its integrated features, programmability, and adaptable design ensure seamless performance across a wide range of applications, simplifying development and accelerating time to market.

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings A89333 ECAD Model Type Image
View Datasheet
Navigate

Description

Top Features

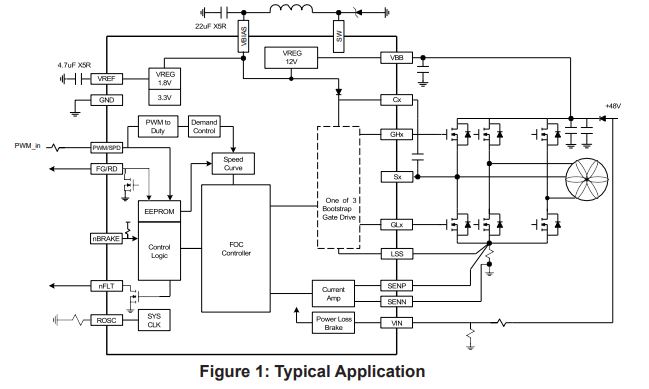

Typical Applications

Packaging

Unleash the full potential of your BLDC motors with Allegro's A89333 and A89333-1, a revolutionary 48V and 12V sensorless, code-free FOC controller. This highly integrated IC supports up to 75V (A89333 only) and 40V (A89333-1 only) with an integrated buck regulator for exceptional efficiency. Both devices feature sophisticated algorithms for optimized motor startup, whisper-quiet performance, and minimal acoustic noise. Whether you're designing 48V or 12V server fans, home appliances, or telecom equipment, the A89333 and A89333-1 simplify development and delivers unparalleled motor control.

Simplify your design process with a fully integrated Field Oriented Control (FOC) algorithm, eliminating complex programming, maximize power savings in demanding applications with the integrated 75V-rated buck regulator and seamlessly switch between speed, torque, and power mode operation providing versatile control that will help to meet your application's specific needs.

  • 75 V maximum rating with integrated buck regulator for high efficiency
  • Fully integrated single-shunt sensorless FOC controller (code-free)
  • Speed, torque, and power mode operation
  • Slew-rate control for electromagnetic-interference (EMI) mitigation
  • Ultra-quiet low-speed operation

28-Contact QFN with exposed pad (EC package)

EC Packaging Documentation
