Automotive-Grade, Constant-Current 2.0 A PWM Dimmable Synchronous Buck LED Driver

A80800

A80800 Product Image

The A80800-2 is a second-generation to the popular ALT80800, Automotive-Grade, 2A PWM Dimmable Synchronous Buck LED Driver.  The A80800-2 builds on the flexible application features of the ALT80800 with increased diagnostic and recovery features, for robust performance in a wider application space.  The A80800-2 is pin for pin compatible with the ALT80800.

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings A80800 ECAD Model Type Image
View Datasheet
Navigate

Description

Top Features

Typical Applications

Packaging

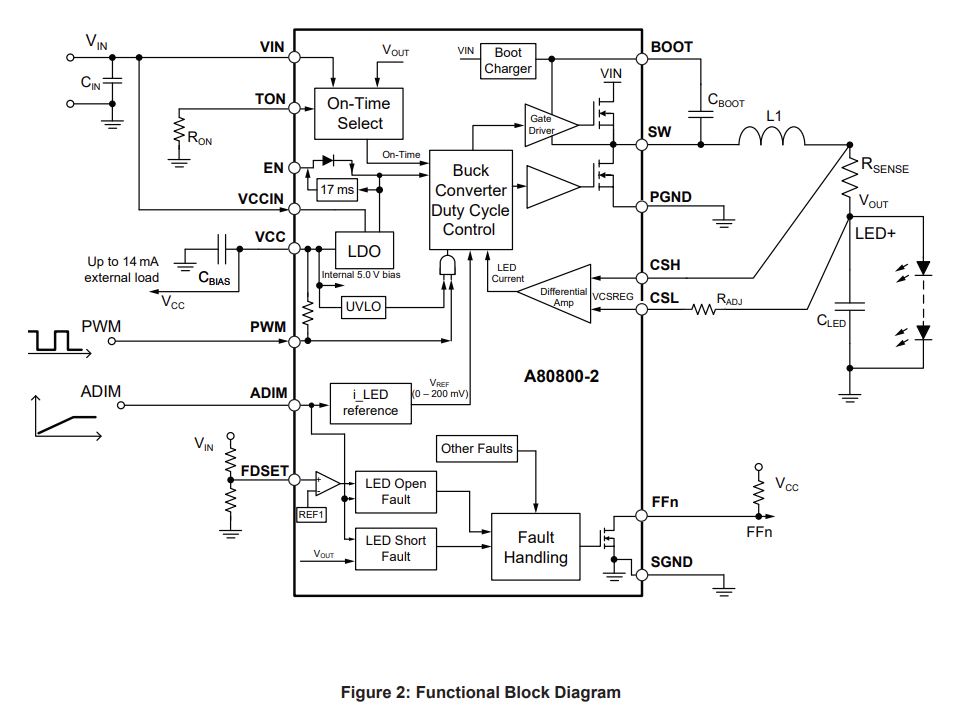

The A80800-2 is a compact, high-efficiency, low EMI LED Driver for automotive lighting applications. It is a synchronous buck switching regulator that provides constant-current output to drive high-power LEDs. It integrates both high-side and low-side N-channel DMOS switches for DC-to-DC step-down conversion. Output current is user-selectable by an external current sense resistor, and output voltage is automatically adjusted to robustly drive and dim various numbers of LEDs in a single string.

  • 55Vin rating – Can be used on traditional 12-V automotive, and 24-V trucks, and systems using a pre-boost supply followed by the A80800-2 to drive a high number of LEDs
  • Integrated FETs – No need for external FET(s) or Diode as part of the buck conversion, and higher efficiency
  • Switching frequency dithering for EMI reduction – pass OEM requirements and minimize associated components
  • 5V Vcc can be used to source up to 14mA as a local rail (e.g., power a small uC) – potentially eliminate an LDO

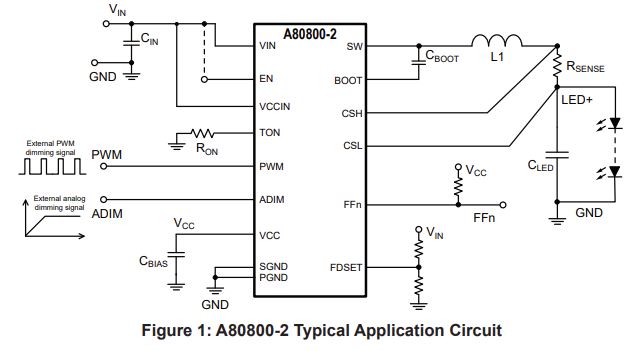

  • Automotive Lighting
  • Hi/Lo Beam and Matrix Headlights
  • Front and Rear Fog Lights
  • Daytime Running Lights
  • Turn/stop Lights
  • Dimmable Interior Lights
  • Other Automotive Lighting Applications

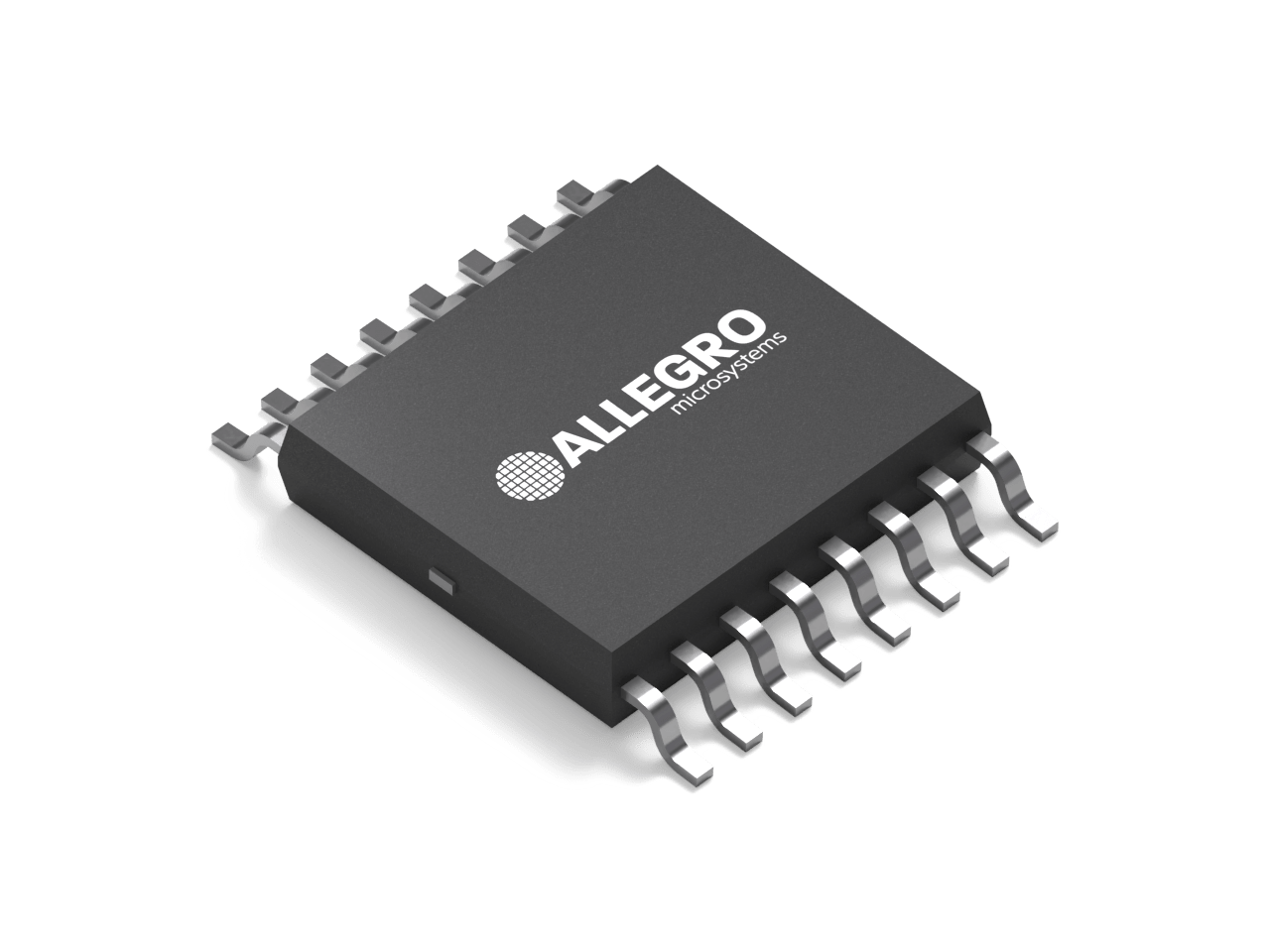

16-Pin eTSSOP (suffix LP)

LP Packaging Documentation
