40 V, 2.5 A, Synchronous Buck Regulator with Low EMI and 6 µA Quiescent Current

A81805

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings A81805 ECAD Model Type Image
Download Datasheet
Navigate

Description

Top Features

Packaging

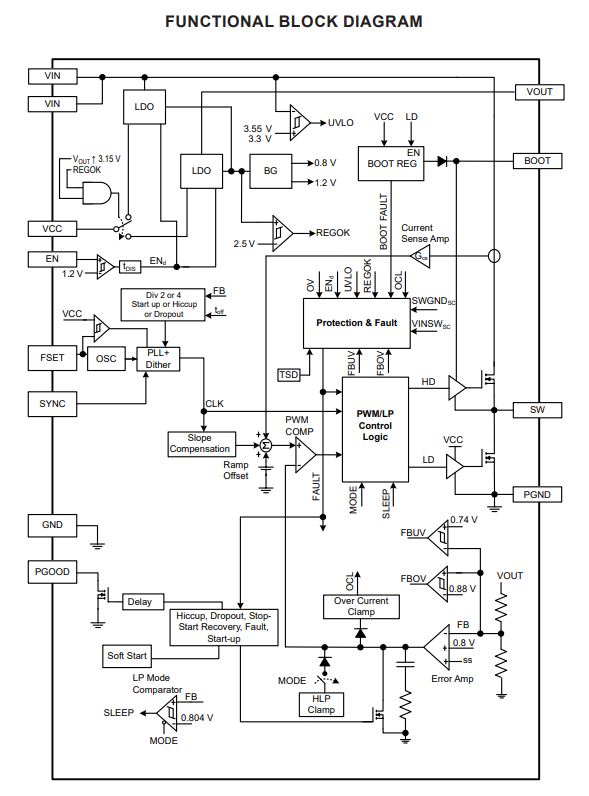

The A81805 is a powerful synchronous buck regulator that offers high efficiency over the full load of up to 2.5A. This regulator's unique architecture reduces the amount of EMI generated by the switching components to minimize the number of external components. The A81805 has a very low 6uA quiescent current which will help maximize battery life in standby mode. The input voltage range is wide enough to survive many transients in automotive and industrial applications and not turn off when the voltage drops.

  • Wide input voltage range: 3.5V to 40V
  • AEC-Q100 Grade 0 qualified
  • High efficiency: 92%, 12 to 5V at 1A
  • Low EMI: spread spectrum dithering
  • Wide switching frequency range: 250kHz to 2.5MHz
  • Up to 2.5A continuous output current

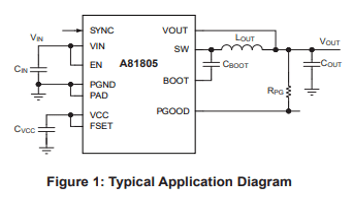

Typical Applications:



20-contact QFN (suffix ES) 4 mm × 4 mm × 0.75 mm with exposed thermal pad and wettable flank.

ES Package Documentation

× not found

Part Number Specifications and Availability

Part Number
Description
Status
Topology
Select all
Buck
Operating Input Voltage Min (V)
3
34
4
≥
≤
Operating Input Voltage Max (V)
40
4040
40
≥
≤
Output Current (A)
2
23
3
≥
≤
Converter Switching Freq. (MHz)
Select all
0.4 to 2.5
Package
Select all
20-Pin QFN
Market
Select all
Automotive
Industrial

Samples
Part Composition / RoHS DataCheck StockECAD
A81805KESJSRBuck3.5040.02.5020-Pin QFNAutomotive, IndustrialView DataCheck Distributor StockECAD model image
A81805KESJSR-1Buck3.5040.02.5020-Pin QFNAutomotive, IndustrialView DataCheck Distributor StockECAD model image
Part Number
Topology
Operating Input Voltage Min
(V)
Operating Input Voltage Max
(V)
Output Current
(A)
Package
Market
A81805KESJSRBuck3.5040.02.5020-Pin QFNAutomotiveIndustrial
A81805KESJSR-1Buck3.5040.02.5020-Pin QFNAutomotiveIndustrial

Documentation and Resources

Documentation

Filter Document Type:
All Types
All Types Brochure Guide
Documents Found: 2
Document Type Document Name
Brochure
A Scalable Approach to Power Tool Designs
Guide
A81805 Evaluation Board User Manual
