High Speed Inductive Position Sensor IC with Analog Outputs

A17802

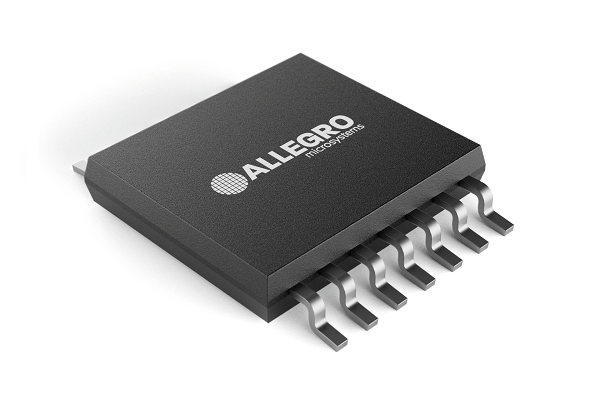

High Speed Inductive Position Sensor IC with Analog and Digital Outputs - A17802/3 Product Image

The A17802 IC is an inductive position sensor designed to measure the rotational angle of a metallic target and deliver the information over a digital output or a differential sine and cosine analog interface.

Request Datasheet and Samples
Navigate

Description

Top Features

Typical Applications

Packaging

The A17802 IC is an advanced inductive position sensor designed to measure the rotational angle of a metallic target and output the information over a differential sine and cosine analog interface. The IC features digital processing that optimizes the inductive front-end and applies compensations that maximize system-level angle accuracy.

The A17802 provides a high-speed absolute-angle sensor that is suitable for advanced synchronous motor control, including automotive electric motor systems.

The A17802 was developed in accordance with ISO 26262 as a hardware safety element out of context. with ASIL C capability for use in automotive safety-related systems.

  • Measures angle with <0.5°el accuracy at speeds up to 250k eRPM
  • Automatic TX and RX optimization at each power-up
  • Harmonic compensation reduces error by up to 3x
  • Synchronization compensation perfects commutation timing for efficient motor control
  • Programmable zero angle enables arbitrary target alignment
  • Programmable via SPI or Manchester Protocol
  • Developed in accordance with ISO 26262:2018 ASIL C(D) (pending assessment)

14-PIN TSSOP (Suffix LE)
