Small Low Power Unidirectional Linear Hall-Effect with Sleep Mode

A31010

EH-DFN

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings A31010 ECAD Model Type Image
Download Datasheet
Navigate

Description

Top Features

Typical Applications

Packaging

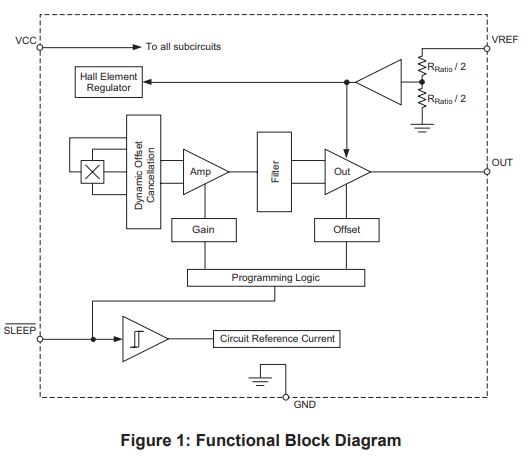

The A31010 family of unipolar linear Hall-effect sensor ICs is an ideal part for battery powered head-on (i.e. pushbutton) and slide-by (i.e. slider) motion detection present in game controller triggers, keyboards, security systems, liquid level, and other consumer applications.

The unipolar operation outputs a voltage proportional to the applied positive magnetic field ensuring maximum resolution while the external Vref pin provides flexibility for the output reference enabling operation in a ratiometric or non-ratiometric mode.

The fast wakeup and sleep time allows the A31010 to transition quickly between sleep and awake modes and the user-controlled sleep pin enables flexible duty cycles to optimize power consumption. These features, coupled with a low supply voltage rating down to 2.5 V, make this IC ideal for battery-powered applications while enabling easy integration to 3.3 V microcontrollers.

These devices are available in a small, lead free, 2 mm × 3 mm, 0.75 mm height DFN-6 package to minimize PCB board area.

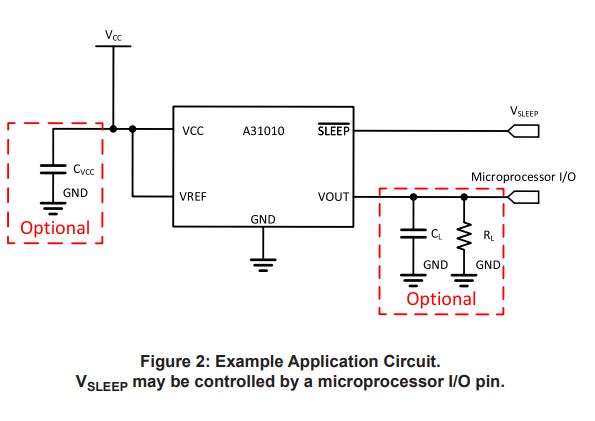

  • User-controlled sleep mode with fast (< 60 µs) wakeup time for lag-free power savings
  • 3.2 mA active and 25 µA sleep current reduces total power consumption and extends battery life
  • Operates down to 2.5 V supply for battery applications
  • Low quiescent voltage output maximizes output range and resolution
  • Small size DFN-6 (2 mm x 3 mm x 0.75 mm) for minimal board area
  • Game controllers
  • Joysticks
  • Triggers
  • Personal electronics
  • Keyboards
  • Virtual and augmented reality devices
  • Human-machine interfaces

These devices are available in a small, lead free, 2 mm × 3 mm, 0.75 mm height DFN-6 package to minimize PCB board area (suffix EH).

EH Package Documentation

× not found

Part Number Specifications and Availability

Part Number
Description
Status
Technology
Output Type
Supply Voltage Min (V)
2
23
3
≥
≤
Supply Voltage Max (V)
3
34
4
≥
≤
Typical Sensitivity (mV/G)
Select all
3.78
10
Typical Sensitivity (mV/mT)
Sensitivity Error (%)
Quiescent Output (Typical, V)
Select all
6.47% Vref
Output Bandwidth (Typical, kHz)
Select all
10
Temp. Ranges
Select all
-20°C to 85°C
Programming
Select all
Factory Programmed
Package
Select all
6-Pin MLP/DFN

Samples
Part Composition / RoHS DataCheck StockECAD
A31010SEHALT-10HallAnalog2.653.50101-20°C to 85°CFactory Programmed6-Pin MLP/DFNView DataCheck Distributor StockECAD model image
A31010SEHALT-4HallAnalog2.653.503.781-20°C to 85°CFactory Programmed6-Pin MLP/DFNView DataCheck Distributor StockECAD model image
Part Number
Technology
Output Type
Supply Voltage Min
(V)
Supply Voltage Max
(V)
Typical Sensitivity (mV/G)
Sensitivity Error (%)
Temp. Ranges
Programming
Package
A31010SEHALT-10HallAnalog2.653.50101-20°C to 85°CFactory Programmed6-Pin MLP/DFN
A31010SEHALT-4HallAnalog2.653.503.781-20°C to 85°CFactory Programmed6-Pin MLP/DFN

Documentation and Resources

Documentation

Filter Document Type:
All Types
All Types Application Note
Documents Found: 1
Document Type Document Name
Application Note
Unipolar Hall-Effect Sensor IC Basics
