Micropower Latches for Battery-Powered and Eco-Conscious Applications

APS12753

APS12753 - Low voltage micropower latch for automotive and industrial applications - MD package

The APS12753 Micropower Hall-effect latch ICs are offered with and without AEC-Q100 qualification for low-voltage applications in Automotive, Industrial and Consumer Applications.

* Note: If you have issues logging into this feature you may need to enable 3rd party cookies in your browser settings APS12753 ECAD Model Type Image
View Datasheet
Navigate

Description

Top Features

Typical Applications

Packaging

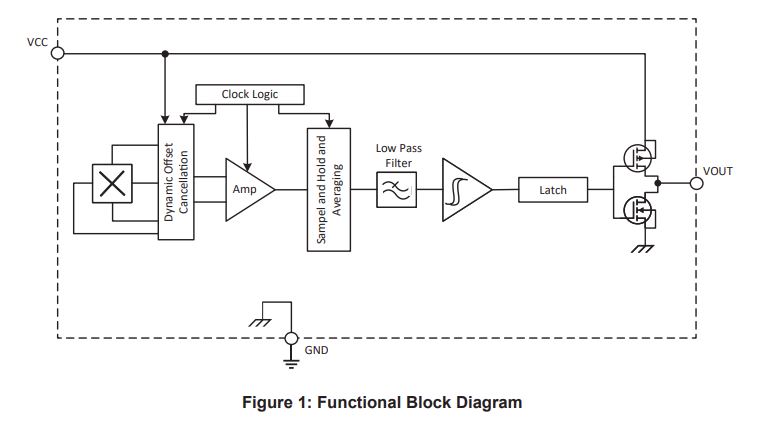

These sensors are temperature-stable and suited for operation over extended junction temperature ranges up to 165°C. This family of Hall-effect switches provides contactless control of a push-pull output, which actuates in response to a magnetic field applied to the branded package face. Additionally, the Micropower logic allows ultra-low power consumption and operation from 2.2 to 5.5 V.

  • 2.2 to 5.5V operation
  • Ultra-low power consumption (micropower)
  • AEC-Q100 qualified
  • Omnipolar and unipolar latch threshold options
  • Sleep time options
  • High and low sensitivity magnetic latch point options
  • Choice of output polarity
  • Chopper stabilization
    • Low latch point drift over temperature
    • Insensitive to physical stress
  • Push-pull output
  • Solid-state reliability
  • Industry-standard package and pinout
  • Battery-critical applications
  • Brushless DC motors
  • Medical equipment
  • Doors, covers, lids, and tray position detection
  • E-mobility
  • Incremental rotary encoding
  • Smart meters, flow meters
  • Home appliances

The APS12753 is offered in package type MD-3, a standard 3-pin SOT23-3 surface-mount package. The package is lead (Pb) free.
