Low Resistance, High Power Density 200A Current Sensor in QFN Package

ACS37220

ACS37220 Product Image

The ACS37220 is a magnetic current sensor offered in a 4x4mm QFN package designed to replace high-power sense resistors in high-current monitoring applications requiring an isolation voltage below 100V. Compared to shunts, this device provides a smaller footprint, higher efficiency and simpler integration.

ACS37220 ECAD Model
Download Datasheet
Navigate

Description

Top Features

Typical Applications

Packaging

The ACS37220 is a high-power-density 200A, 150kHz magnetic current sensor for applications requiring an isolation voltage below 100V. This device is designed to replace high-power sense resistors with a solution that achieves lower resistance, a smaller footprint and simpler integration. The ACS37220 measures currents up to 200A and includes overcurrent fault output with user-configurable threshold to provide fast short-circuit detection for enhanced system protection.

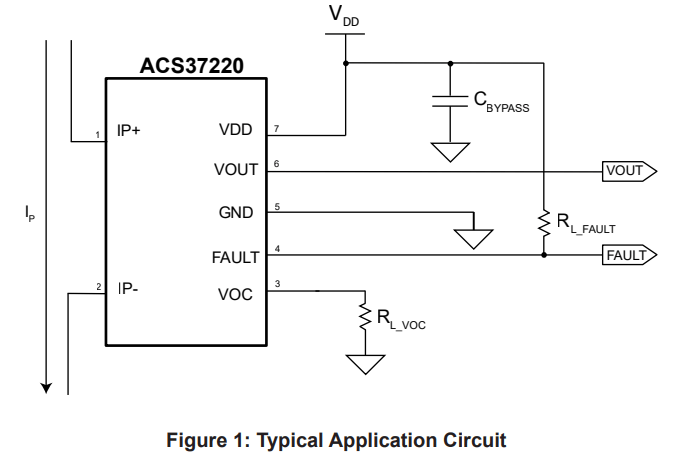

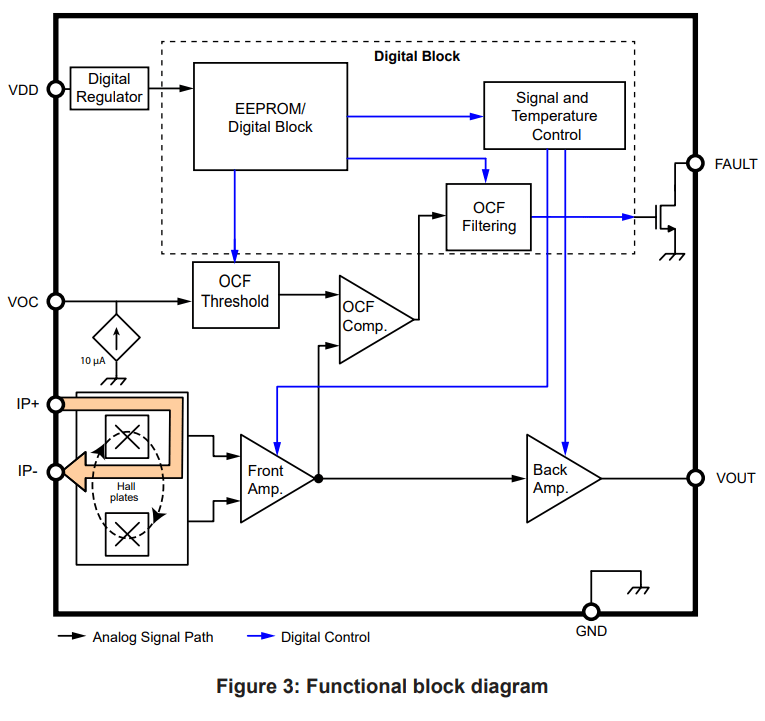

The ACS37220 is offered in the EZ 4x4mm QFN package that features a low internal conductor resistance of 100 μΩ for low power loss and high inrush current withstand capability. This package is designed to measure currents up to 200A. The current is sensed differentially via two Hall plates that provide common-mode field rejection and optimized performance in the presence of external magnetic fields.

The ACS37220 is ideal for low voltage (< 100V), high current monitoring applications and in-line current sensing in motor drives.

  • AEC-Q100 Grade 0, automotive qualified
  • Ultra-low primary conductor resistance of 100 μΩ for high efficiency and high inrush current capability
  • Small footprint, 4 mm × 4 mm QFN “EZ” package with wettable flank, suitable for space-constrained automotive applications
  • Overcurrent fault output with user-configurable threshold to provide fast short-circuit detection for enhanced system protection

Low-voltage, high current monitoring in:

The ACS37220 is offered in the small footprint 7-pin EZ package. The EZ package is a 4x4mm QFN with wettable flank and features a low internal conductor resistance of 100 μΩ for low power loss and high inrush current withstand capability. This package is designed to measure currents up to 200A.

EZ Package Documentation

× not found

Part Number Specifications and Availability

ACS37220 Product Overview

The ACS37220 is a magnetic current sensor offered in a 4x4mm QFN package designed to replace high-power sense resistors in high-current monitoring applications requiring an isolation voltage below 100V. Compared to shunts, this device provides a smaller footprint, higher efficiency and simpler integration.
